Furniture Hinges

Concealed hinge Metalla 510 A/SM 110° - 329.26.624

HAFELE

Download Product ID Card

Download Product Files

Concealed hinge Metalla 510 A/SM 110° - 329.26.624 by Hafele — Provides aesthetic and functionality for your doors.

Properties

Product Code: 329.26.624
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.26.624_Safety notes
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

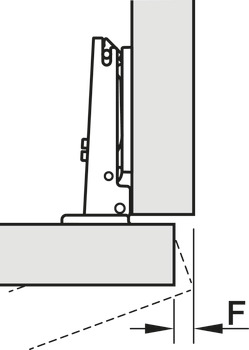

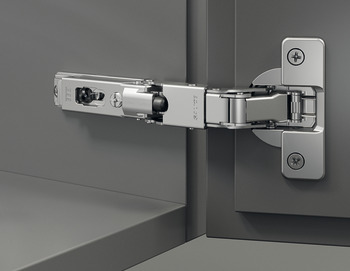

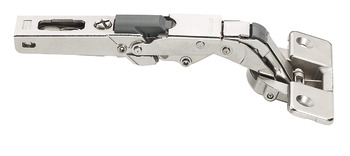

The Concealed hinge Metalla 510 A/SM 110° - 329.26.624 by Hafele represents a refined fusion of quality and functionality. This hinge features a full overlay design that enhances the aesthetic appeal of your doors. It is ideal for profile and wooden doors. Made from zinc alloy, this product ensures durability and longevity.

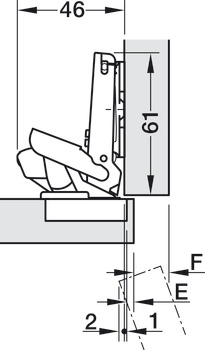

Additionally, the hinge offers an opening angle of 110°, facilitating easy access and optimizing space usage. With a cup drilling depth of 9 mm, installation is straightforward. The hinge allows for side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, and with Metalla 510 SM mounting plates from -0.5/+2.8 mm. These features provide flexibility during installation, ensuring the door is properly aligned.

The Concealed hinge Metalla 510 A/SM 110° - 329.26.624 stands out by offering both aesthetic and functional benefits, making it a reliable choice with Hafele's quality.
