Concealed hinge, Grass Tiomos - 348.32.532
Furniture Hinges

Concealed hinge, Grass Tiomos - 348.32.532

HAFELE

Drawing Files Technical Documents

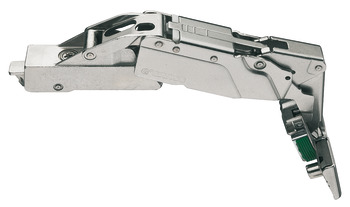

Concealed hinge, Grass Tiomos - 348.32.532 by Hafele — an ideal solution for cabinets with internal pull-outs.

Properties

Product Code: 348.32.532
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 348.32.532_Safety notes
  • ISO_27001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

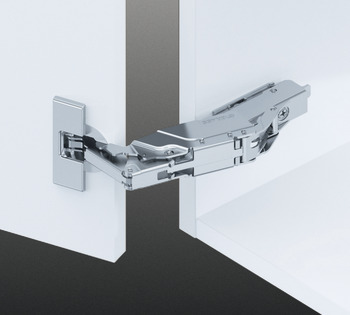

The Concealed hinge, Grass Tiomos - 348.32.532 by Hafele represents a refined fusion of quality and functionality. This hinge features half overlay mounting and twin mounting options, making it suitable for wooden doors. The product is equipped with a cup drilling system that facilitates easy installation. Made from zinc alloy for the cup and steel for the hinge arm, it ensures durability and longevity.

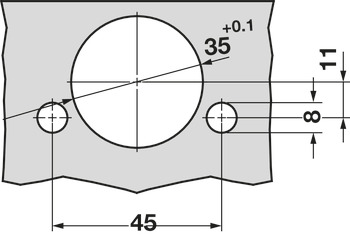

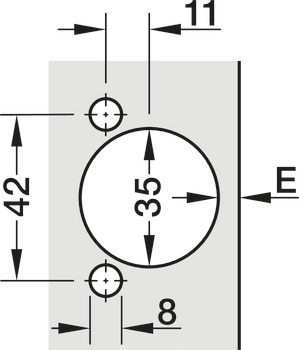

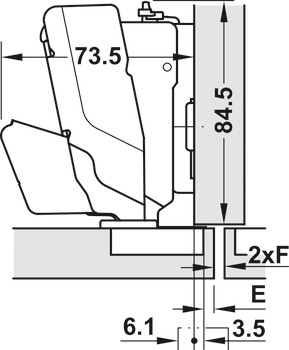

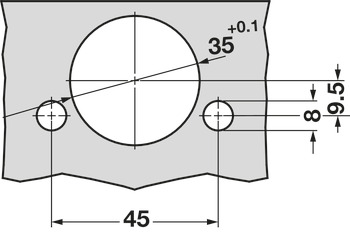

With a 155° opening angle, it provides ample access while the 10 mm cup drilling depth and 35 mm cup drilling diameter simplify the installation process. The 42/11 drilling pattern, combined with adjustable features, ensures a perfect fit for various door types. Side adjustment of ±2 mm, height adjustment of ±2.5 mm, and depth adjustment of -2/+3 mm offer flexibility, with height adjustment depending on the mounting plate.



The Concealed hinge, Grass Tiomos - 348.32.532 stands out with its ease of installation and high durability. This product meets the needs of users by providing both aesthetic appeal and functionality in interior spaces.
