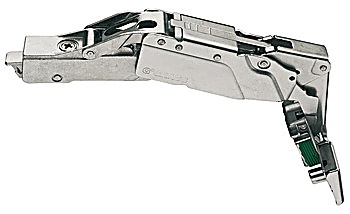

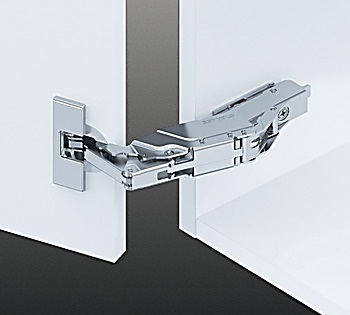

Concealed hinge, Grass Tiomos 155°, full overlay mounting - 348.32.731 by Hafele — This hinge is designed for cabinets with internal pull-outs or extending trays, providing a seamless look. Made from high-quality materials, it ensures durability and ease of use.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hinge, Grass Tiomos 155°, full overlay mounting - 348.32.731 by Hafele represents a refined fusion of quality and functionality. Designed for cabinets with internal pull-outs or extending trays, it provides a seamless aesthetic. The hinge features a full overlay design that allows for maximum access and usability. Made from zinc alloy for the cup and steel for the hinge arm, it guarantees longevity and strength.

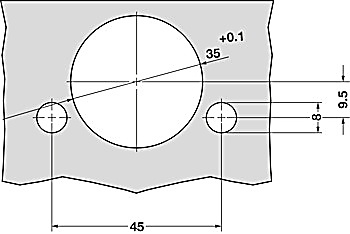

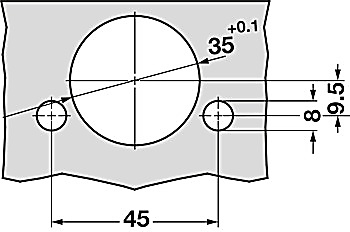

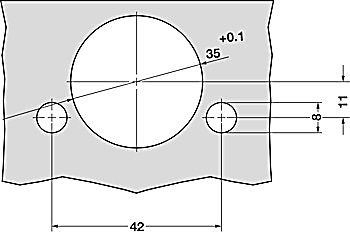

This hinge offers a 155° opening angle, making it ideal for easy access to cabinet contents. The installation process is tool-free, allowing for quick and hassle-free mounting. The cup drilling depth is 10 mm with a diameter of 35 mm, ensuring precise placement during installation. Additionally, it includes side adjustment of ±2 mm, height adjustment of ±2.5 mm, and depth adjustment of -2/+3 mm, accommodating various cabinet configurations.
This hinge stands out due to its unique combination of aesthetic appeal and practical functionality, making it a preferred choice for modern cabinetry.
