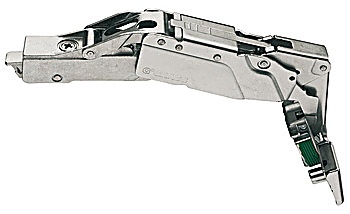

Concealed hinge, Grass Tiomos 155°, full overlay mounting - 348.32.531 by Hafele — designed for cabinets with internal pull-outs or extending trays. Made from durable materials ensuring long-lasting performance.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hinge, Grass Tiomos 155°, full overlay mounting - 348.32.531 by Hafele represents a refined fusion of quality and functionality. With a full overlay design, it conceals the hinge when the cabinet doors are closed, providing a sleek and modern appearance. Made from zinc alloy for the cup and steel for the hinge arm, it guarantees durability and strength.

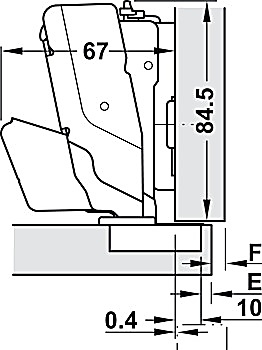

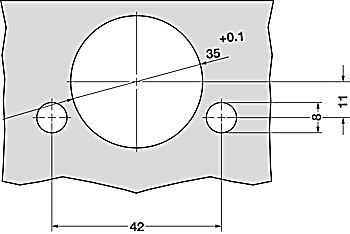

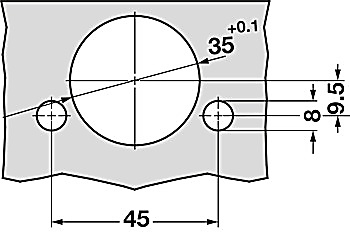

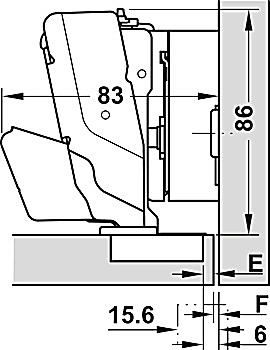

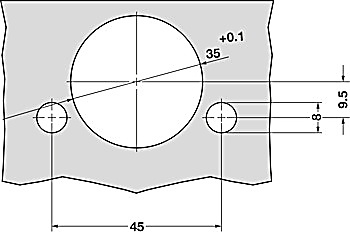

With an opening angle of 155°, it allows for easy access to the contents of the cabinet. The cup drilling depth of 10 mm and a diameter of 35 mm ensures precision during installation. Additionally, the hinge features side adjustment of ±2 mm, height adjustment of ±2.5 mm, and depth adjustment of -2/+3 mm, providing flexibility during mounting.
The Grass Tiomos 155° concealed hinge stands out due to its unique combination of style and functionality, making it an excellent choice for modern furniture solutions.
