Concealed hinge, Grass Tiomos 110° - 348.37.530
Furniture Hinges

Concealed hinge, Grass Tiomos 110° - 348.37.530

HAFELE

Drawing Files Technical Documents

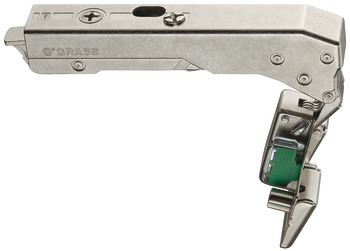

Concealed hinge, Grass Tiomos 110° - 348.37.530 by Hafele — an ideal hinge solution for corner applications.

Properties

Product Code: 348.37.530
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 348.37.530_Safety notes
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

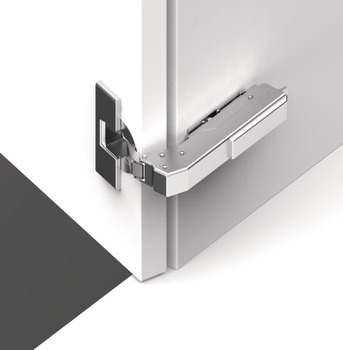

The Concealed hinge, Grass Tiomos 110° - 348.37.530 by Hafele represents a refined fusion of quality and functionality. This hinge is specially designed for corner applications, providing excellent compatibility with wooden doors. The product is made from steel and zinc alloy, offering both durability and an aesthetic appearance.

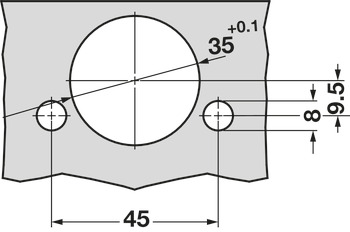

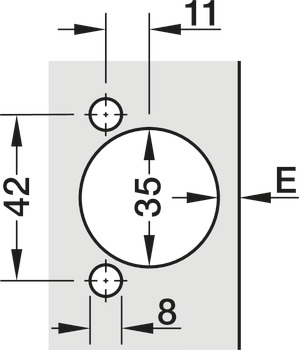

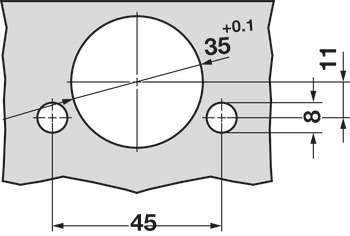

The concealed hinge allows for an opening angle of 110°, ensuring full access when the door is opened. With a cup drilling depth of 12.60 mm and a cup drilling diameter of 35 mm, installation is straightforward. The product features side adjustment of ±2 mm, height adjustment of ±2.5 mm, and depth adjustment of -2/+3 mm, ensuring precise positioning during installation.



The Concealed hinge, Grass Tiomos 110° - 348.37.530 stands out with its functionality and design, making it a preferred choice for furniture applications.
