Concealed hinge Clip Top Blumotion 95° half overlay - 342.47.601

HAFELE

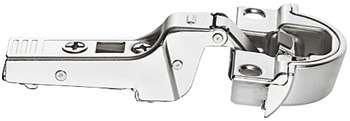

Concealed hinge Clip Top Blumotion 95° half overlay - 342.47.601 by Hafele — A user-friendly solution with automatic closing and soft close mechanisms.

Properties

Product Code: 342.47.601
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

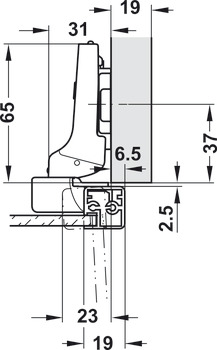

Dimensions

Length (cm): No Information
Width (cm): 1.9
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
342.47.601_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

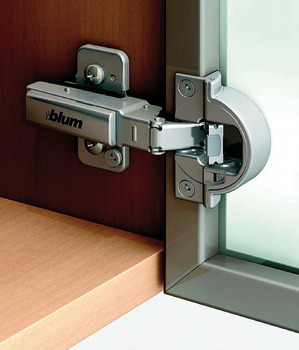

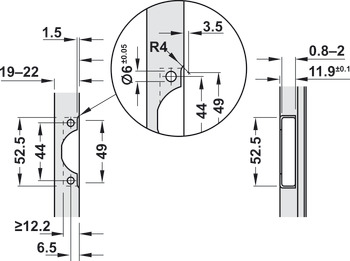

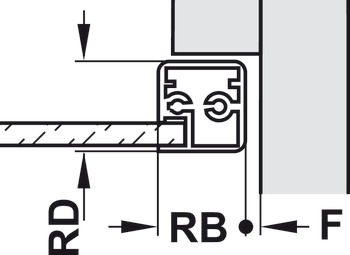

The Concealed hinge Clip Top Blumotion 95° half overlay - 342.47.601 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for narrow aluminum frames, accommodating frame widths of 19-22 mm. It features an automatic closing spring and a soft closing mechanism that can be deactivated when needed. Suitable for wooden doors, this product requires cup drilling for assembly.

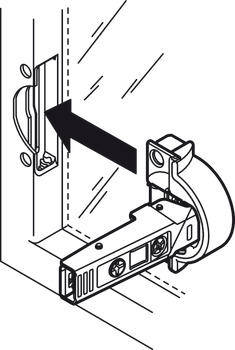

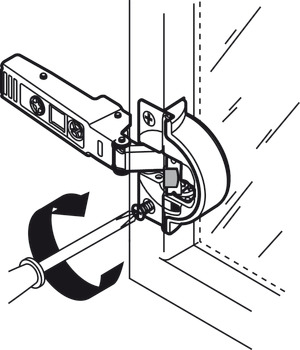

Constructed from durable materials, the cup is made of zinc alloy while the hinge arm is crafted from steel. With a nickel-plated finish, this hinge not only offers aesthetic appeal but also boasts a 95° opening angle for enhanced access. Installation is straightforward; the door can be attached to the cabinet without tools using a clip system. Additionally, the hinge provides adjustment capabilities including side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm.

The Concealed hinge Clip Top Blumotion 95° half overlay - 342.47.601 stands out with its quality materials and easy installation. Hafele's product meets user expectations effectively.
