Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
342.83.554_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

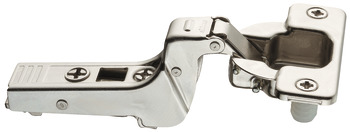

The Concealed hinge, Clip Top 95°, inset mounting - 342.83.554 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for thick doors and profile doors, compatible with doors up to 32 mm. With a high opening angle of 95°, it is ideal for wooden door materials. The product is made of durable steel and offers easy installation.

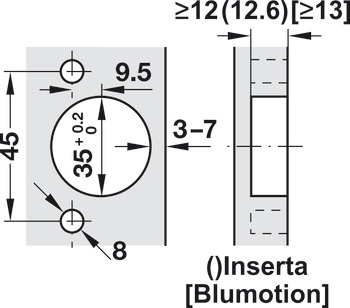

This concealed hinge features a cup drilling diameter of 35 mm, facilitating straightforward assembly. The drilling pattern is 45/9.5 mm, allowing for precise fitting. It provides side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, ensuring versatility in installation. The door can be mounted on the cabinet without tools, thanks to the convenient clip system.
The concealed hinge features an automatic closing spring mechanism, ensuring doors close smoothly and securely. This feature enhances the overall functionality and aesthetic appeal of your doors. Hafele's product stands out for its durability and ease of use.
