Furniture Hinges

Concealed hinge, Clip Top 95°, half overlay - 342.91.601

HAFELE

Concealed hinge, Clip Top 95°, half overlay - 342.91.601 by Hafele — Provides a perfect opening and closing experience for your doors.

Properties

Product Code: 342.91.601
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 2.2
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
342.91.601_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

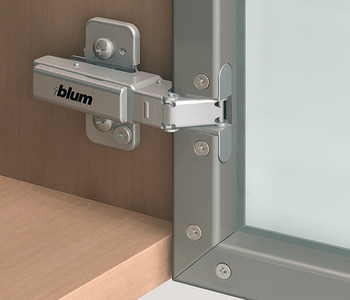

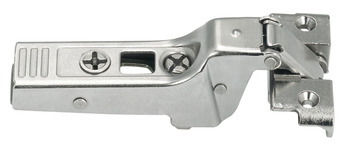

The Concealed hinge, Clip Top 95°, half overlay - 342.91.601 by Hafele represents a refined fusion of quality and functionality. This hinge features an automatic closing spring and does not include a soft closing mechanism. Designed for half overlay mounting and twin mounting options, it is suitable for aluminum frame doors without the need for door processing during assembly.

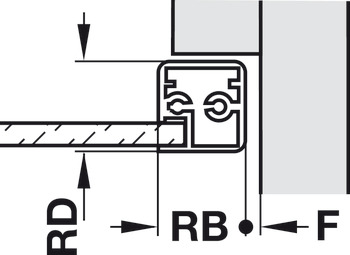

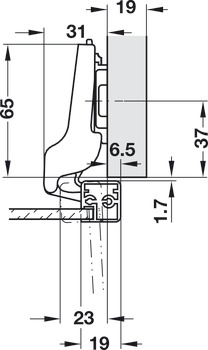

Made from a zinc alloy cup and steel hinge arm, it ensures long-lasting durability. The nickel plated finish adds an aesthetic appeal. With an opening angle of 95°, it allows for smooth door operation. It is suitable for aluminum frame widths of up to 22 mm and features a screw fixing cup for secure installation.

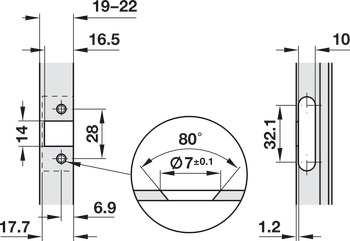

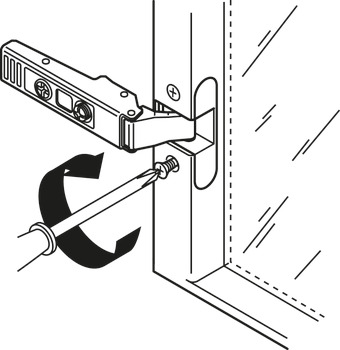

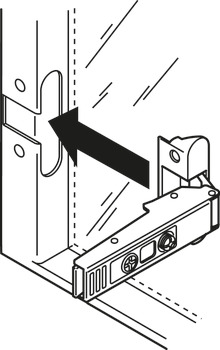

The cup fixing is designed for screw fixing. The drilling pattern is 28/6.9 mm. It offers side adjustment of ±2 mm, height adjustment of ±3 mm, depth adjustment of -2/+3 mm, and height adjustment depending on the mounting plate. The door can be installed on the cabinet without tools using the clip system. The product is supplied with fixing screws.

This product enhances the aesthetic appearance of your doors while providing ease of use and durability. The Concealed hinge, Clip Top 95°, half overlay - 342.91.601 by Hafele is an excellent choice for any aluminum frame door.
