Furniture Hinges

Concealed hinge, Clip Top 95°, full overlay mounting, for screw fixing - 342.91.620

HAFELE

Concealed hinge, Clip Top 95°, full overlay mounting, for screw fixing - 342.91.620 by Hafele — Ensures doors close seamlessly and aesthetically.

Properties

Product Code: 342.91.620
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 2.2
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_27001_ENG
342.91.620_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

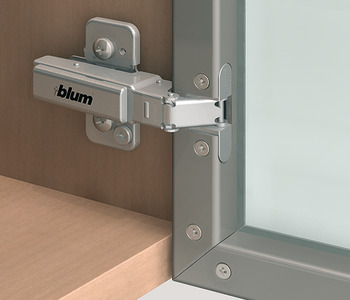

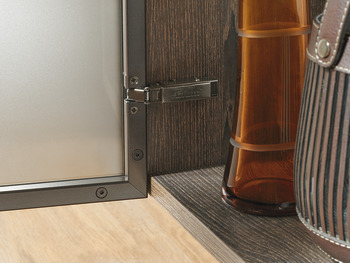

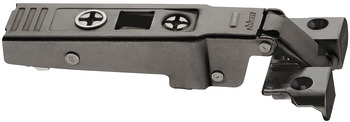

The Concealed hinge, Clip Top 95°, full overlay mounting, for screw fixing - 342.91.620 by Hafele represents a refined fusion of quality and functionality. This hinge ensures that doors close seamlessly, providing an aesthetically pleasing finish. Designed for aluminum frame doors, it facilitates easy installation. The materials used include a durable zinc alloy for the cup and steel for the hinge arm.

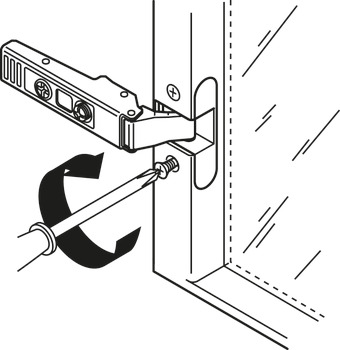

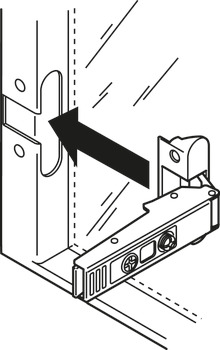

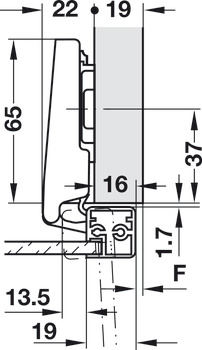

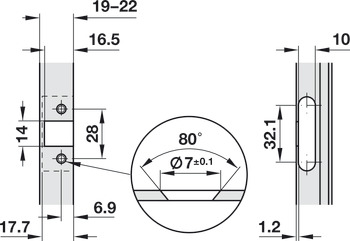

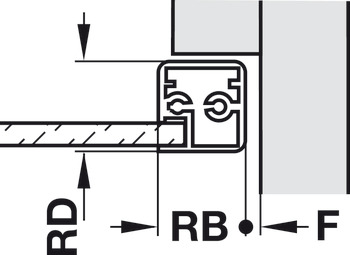

With a 95° opening angle, this hinge is compatible with aluminum frame widths of up to 22 mm. It features screw fixing for secure installation, with a drilling pattern of 28/6.9. Additionally, it offers adjustment facilities including side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm. The installation process is user-friendly, allowing door mounting without tools through a clip system.

This product's unique strengths lie in its seamless operation and durability, making it a preferred choice for various applications.
