Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
342.83.160_Safety notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

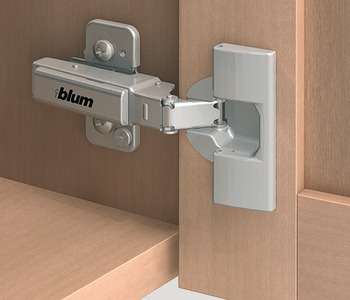

The Concealed hinge, Clip Top 95°, full overlay mounting - 342.83.160 by Hafele represents a refined fusion of quality and functionality. This hinge is specially designed for thick and profile doors, compatible with doors up to 32 mm thick. The full overlay mounting provides an aesthetic appearance, while the steel material ensures durability.

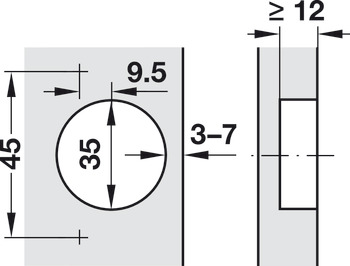

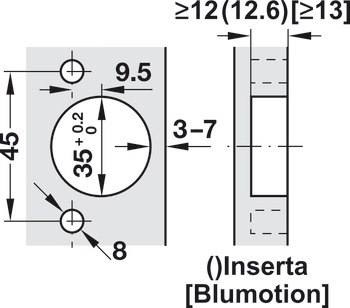

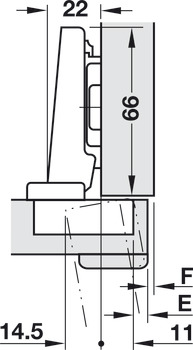

With an opening angle of 95°, it allows for a wide door swing. The door assembly can be easily achieved using a cup drilling method. The product offers adjustment options such as side adjustment ±2 mm, height adjustment ±3 mm, and depth adjustment -2/+3 mm, ensuring perfect alignment after installation.
This product features an automatic closing spring but does not include a soft closing mechanism. The nickel plated finish provides an aesthetic look. With a cup drilling depth of 13 mm, installation is straightforward. The hinge is user-friendly as it can be mounted without tools. Hafele's product stands out with its durability and functionality. Concealed hinges support modern design approaches, offering significant aesthetic advantages.
