Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
ISO_27001_ENG
342.96.301_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

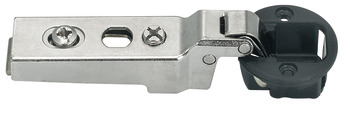

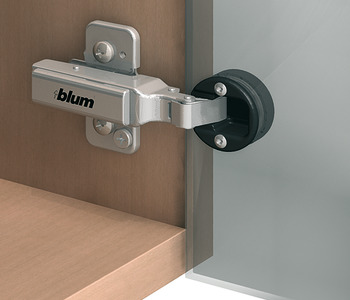

The Concealed hinge, Clip Top 94°, half overlay - 342.96.301 by Hafele represents a refined fusion of quality and functionality. Made from high-quality steel and zinc alloy, this hinge is specifically designed for glass doors. It features an automatic closing mechanism that enhances user convenience. Additionally, the clip system allows for tool-free installation, making it easy to mount doors quickly.

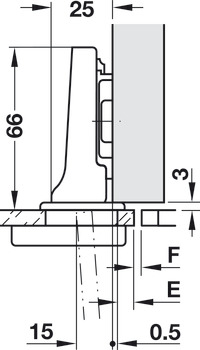

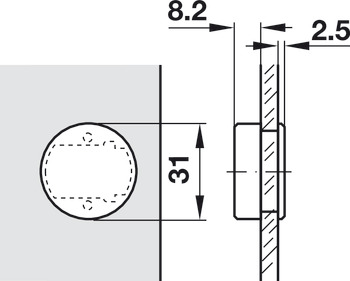

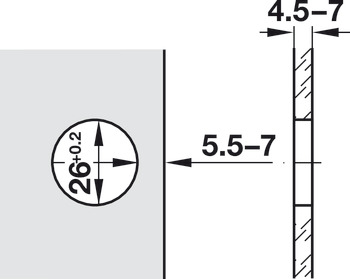

This hinge is ideal for half overlay mounting, providing a 94° opening angle that ensures full access to the door. It accommodates glass thicknesses ranging from 4.5 mm to 7 mm and can be fixed using a 26 mm cup drilling method. The hinge offers adjustment facilities including side adjustment of -3.5/+0.5 mm, height adjustment of ±3 mm, and depth adjustment of ±2 mm.
The Hafele Concealed hinge, Clip Top 94°, half overlay - 342.96.301 is a perfect solution that combines aesthetics and functionality for glass doors. It is preferred by those seeking quality and durability.
