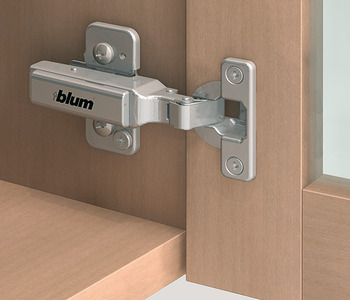

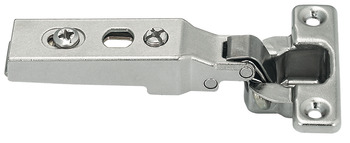

The Concealed hinge, Blum Clip Top Mini 94°, full overlay mounting - 342.97.500 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for small doors and narrow frames. It features an automatic closing spring and does not include a soft closing mechanism. The product is suitable for wooden doors and requires cup drilling for assembly.

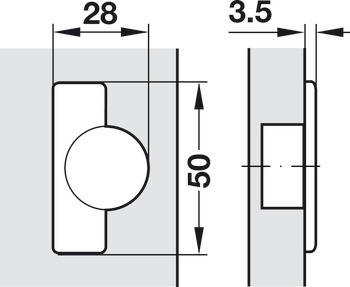

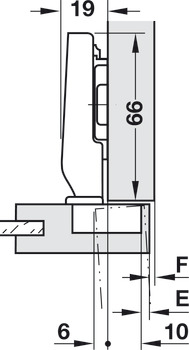

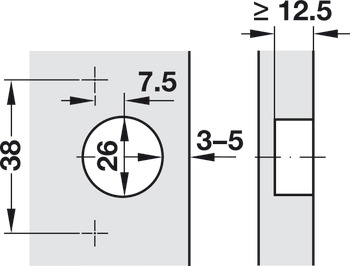

This concealed hinge is designed for full overlay and has an opening angle of 94°. Made from steel, it is finished with nickel plating. The cup drilling depth is 12.50 mm with a diameter of 26 mm. It can be fixed with screws and follows a drilling pattern of 38/7.5. Adjustment options include side adjustment of -3.5/+0.5 mm, height adjustment of ±3 mm, and depth adjustment of -1/+3 mm, depending on the mounting plate.
The Concealed hinge, Blum Clip Top Mini 94°, full overlay mounting - 342.97.500 stands out with its ease of installation and robust design. This product is crafted to meet user needs effectively.
