Concealed hinge, Blum Clip Top Blumotion 110°, inset mounting - 342.42.602

HAFELE

Concealed hinge, Blum Clip Top Blumotion 110°, inset mounting - 342.42.602 by Hafele — This hinge provides automatic closing and soft closing features for enhanced usability.

Properties

Product Code: 342.42.602
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
342.42.602_Safety notes
ISO_9001_ENG
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

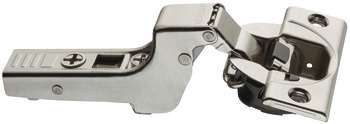

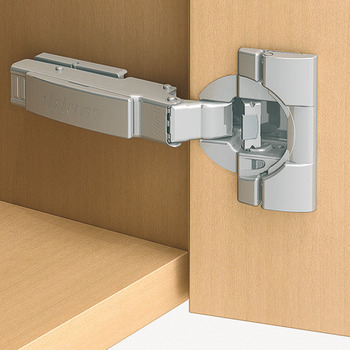

The Concealed hinge, Blum Clip Top Blumotion 110°, inset mounting - 342.42.602 by Hafele represents a refined fusion of quality and functionality. Crafted from high-grade steel, this hinge is designed for wooden doors and features an opening angle of 110°. Its high cranked design allows for easy installation, while the automatic closing spring and soft closing mechanism enhance user experience.

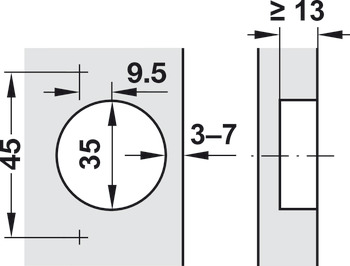

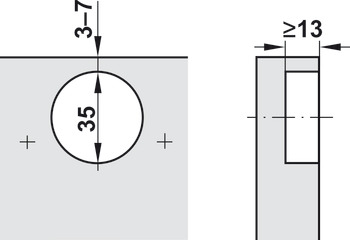

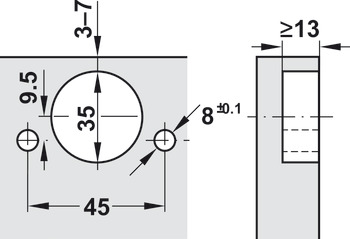

This hinge requires cup drilling for assembly, with a cup drilling depth of 13 mm and a diameter of 35 mm. The drilling pattern is set at 45/9.5, providing versatility in installation. The adjustment facilities include side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, ensuring a perfect fit. Installation is made simple with a clip system that allows for tool-free mounting.

The concealed hinge stands out for its unique features and ease of use, making it an excellent choice for any project requiring reliable and functional hardware.
