Furniture Hinges

Concealed hinge, Blum Clip Top Blumotion 110° - 342.42.661

HAFELE

Concealed hinge, Blum Clip Top Blumotion 110° - 342.42.661 by Hafele — Provides a reliable automatic closing mechanism for your doors.

Properties

Product Code: 342.42.661
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
342.42.661_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

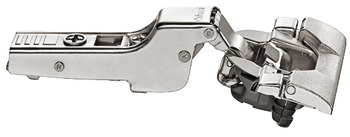

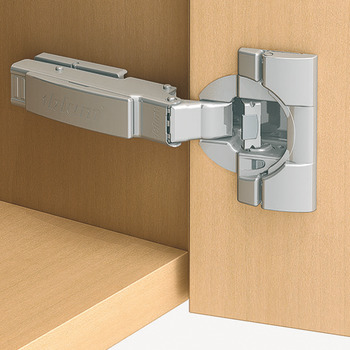

The Concealed hinge, Blum Clip Top Blumotion 110° - 342.42.661 by Hafele represents a refined fusion of quality and functionality. This hinge features an automatic closing spring and a soft closing mechanism that can be deactivated. Designed for half overlay mounting, it is ideal for wooden doors and allows for easy installation without the need for tools.

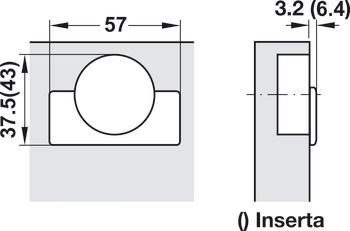

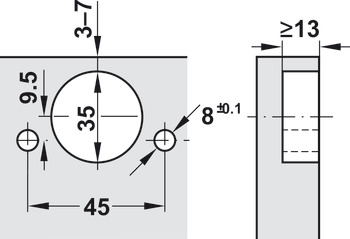

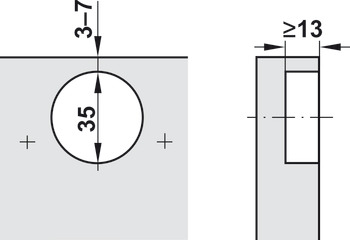

Constructed from durable steel, this hinge offers a 110° opening angle. The assembly requires cup drilling with a depth of 13 mm and a diameter of 35 mm, following a drilling pattern of 45/9.5. It provides adjustment facilities including side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, with additional height adjustment based on the mounting plate.

The Concealed hinge, Blum Clip Top Blumotion 110° stands out for its aesthetic appeal and functional reliability, making it an ideal choice for those seeking quality solutions.
