Concealed hinge, Blum Clip Top 95°, without automatic closing spring - 342.84.400 by Hafele — This product ensures smooth opening and closing of doors.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
342.84.400_Safety notes
ISO_27001_TR
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

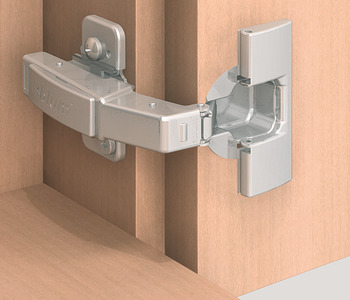

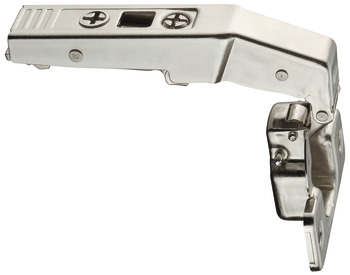

The Concealed hinge, Blum Clip Top 95°, without automatic closing spring - 342.84.400 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for blind corner applications and is ideal for wooden doors. Made from durable steel and finished with nickel plating, it offers both strength and aesthetic appeal.

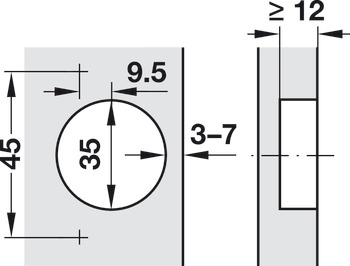

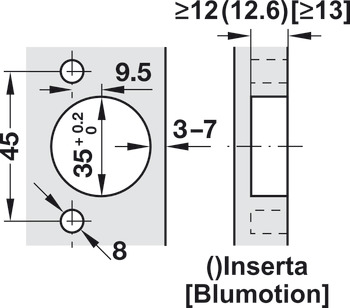

With a 95° opening angle, it allows doors to open smoothly. The cup drilling depth of 13 mm and cup drilling diameter of 35 mm facilitate easy installation. The drilling pattern of 45/9.5 ensures accurate placement of the hinge. It provides side adjustment of ±2.5 mm, height adjustment of ±3 mm, and depth adjustment of ±1 mm, giving users flexibility in installation.

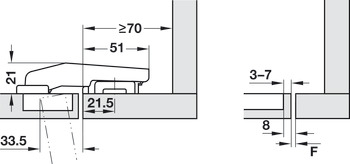

This hinge simplifies installation with its clip system, allowing doors to be mounted on cabinets without tools. To mount the inner door surface flush with the blind corner, only mounting plates with a distance of 3 mm should be used. The hinge features cup fixing for screw fixing. Hafele's product stands out with its combination of aesthetic and functional features.
