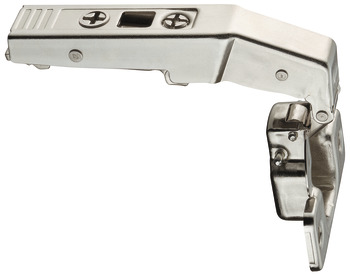

Concealed hinge, Blum Clip Top 95°, with automatic closing spring - 342.84.500 by Hafele — Ensures doors close smoothly and provides an aesthetic appearance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
342.84.500_Safety notes
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hinge, Blum Clip Top 95°, with automatic closing spring - 342.84.500 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for wooden doors, featuring an automatic closing spring mechanism that ensures doors close perfectly every time. Its nickel-plated finish not only enhances aesthetics but also provides durability through its steel construction.

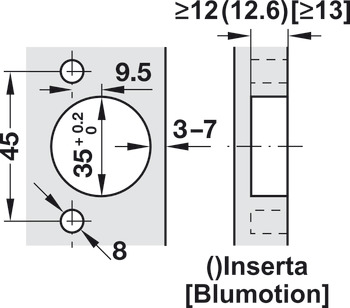

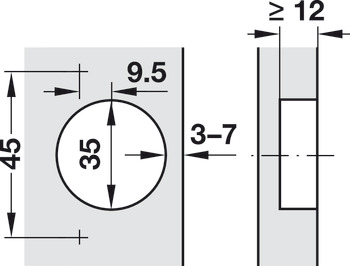

With an opening angle of 95°, this hinge allows for easy access even in tight spaces. The cup drilling depth of 13 mm and a cup drilling diameter of 35 mm make installation straightforward. Additionally, it offers adjustment facilities including side adjustment of ±2.5 mm, height adjustment of ±3 mm, and depth adjustment of ±1 mm, providing flexibility during installation.

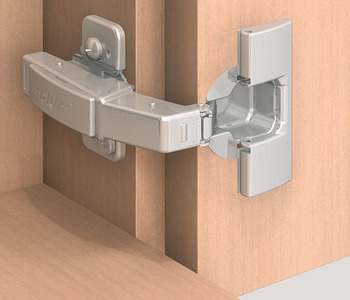

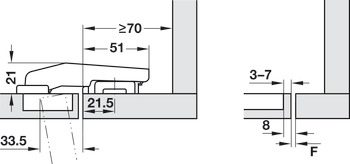

This product allows for tool-free installation of doors, making it convenient for users. To mount the inner door surface flush with the blind corner, only use mounting plates with a distance of 3 mm. The standard screw-on position for the mounting plate is 21.5 mm from the blind corner edge. The Concealed hinge, Blum Clip Top 95°, with automatic closing spring - 342.84.500 stands out for its exceptional design and functionality, making it a preferred choice for any installation.
