Concealed hinge, Blum Clip Top 170°, full overlay mounting - 342.82.160 by Hafele — This hinge allows for wide opening angles on doors, providing easy installation. Made from high-quality materials ensuring long-lasting durability.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
342.82.160_Safety notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

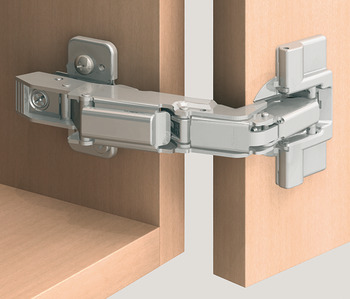

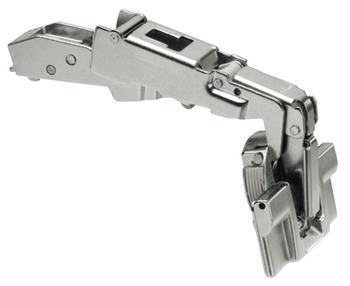

The Concealed hinge, Blum Clip Top 170°, full overlay mounting - 342.82.160 by Hafele represents a refined fusion of quality and functionality. This hinge allows doors to open at a wide angle of 170°, making it ideal for various applications. The full overlay mounting provides an aesthetic finish, while the high cranked design is perfect for wooden doors and ensures easy installation.

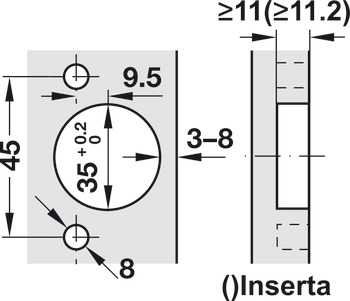

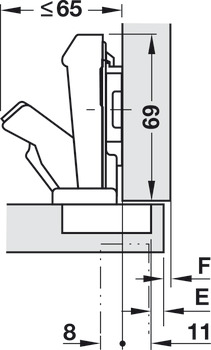

This concealed hinge offers practical solutions for door mounting. It requires no gap for door thicknesses up to 21 mm, while trial mounting is recommended for thicknesses of 22 mm and above. With a cup drilling depth of 11 mm and a diameter of 35 mm, it can be easily installed. The hinge also provides side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, ensuring flexibility.
The Concealed hinge, Blum Clip Top 170°, full overlay mounting - 342.82.160 combines aesthetics and functionality, making it a preferred choice for users seeking ease of installation and durability.
