Butt Hinges

Butt hinge, for rebated interior doors up to 60 kg - 926.37.703

HAFELE

Butt hinge, for rebated interior doors up to 60 kg - 926.37.703 by Hafele — A durable hinge that ensures smooth operation for interior doors.

Properties

Product Code: 926.37.703
Category: Butt Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): No Information
Height (cm): 14
Volume (cm³): 1.6

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_TR
926.37.703_Safety notes
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

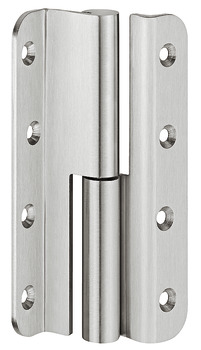

The Butt hinge, for rebated interior doors up to 60 kg - 926.37.703 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for rebated interior doors, supporting weights of up to 60 kg. Made from stainless steel, it offers durability and a sleek matte finish that enhances aesthetic appeal.

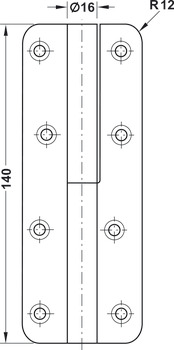

Equipped with a 16 mm knuckle diameter and a knuckle length of 140 mm, this hinge ensures smooth operation for doors. The 3 mm flange thickness and 140 mm flange height provide a robust mounting solution. With a radius of 12 mm, it allows for an aesthetically pleasing installation. The 10 mm pin diameter features a fixed pin design, complemented by an oil chamber steel bearing system for enhanced performance.

Hafele's butt hinge stands out with its ability to ensure smooth operation while providing durability and style. This product is an excellent choice in the realm of architectural hardware.
