Butt Hinges

Butt hinge, for flush interior doors up to 60 kg - 926.36.103

HAFELE

Butt hinge, for flush interior doors up to 60 kg - 926.36.103 by Hafele — A reliable hinge designed for durability and functionality.

Properties

Product Code: 926.36.103
Category: Butt Hinges

Material Properties

Used Material:
Stainless steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 10
Width (cm): 3.5
Height (cm): 10
Volume (cm³): 1.6

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

926.36.103_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

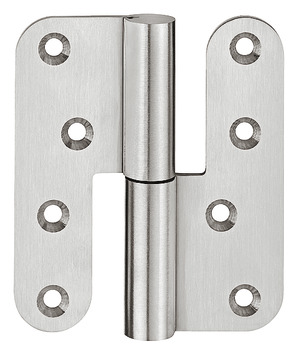

The Butt hinge, for flush interior doors up to 60 kg - 926.36.103 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden frames, capable of supporting door weights up to 60 kg. Made from stainless steel, it features a matte finish that adds an aesthetic appeal. The knuckle ends are welded and ground, ensuring both durability and elegance.

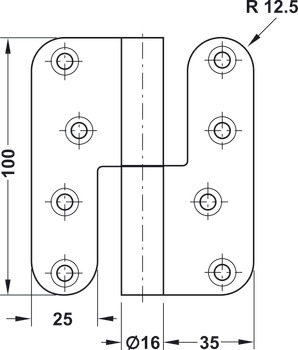

With a flange height of 100 mm and a flange width of 35 mm, this hinge provides robust support. The knuckle diameter is 16 mm, and the flange thickness is 3.10 mm, offering reliable strength. It has a pin diameter of 10 mm and a routing depth of 3.15 mm, making installation straightforward. Compatible with a router bit diameter of 25 mm, it features a bearing type with a fixed pin and an oil chamber steel bearing system.

The Butt hinge, for flush interior doors up to 60 kg - 926.36.103 stands out with its high-quality materials and functionality, making it a preferred choice for your hinge needs.
