Butt Hinges

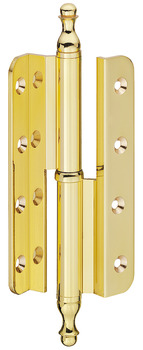

Butt hinge, For rebated interior doors - 926.18.480

HAFELE

Butt hinge, For rebated interior doors - 926.18.480 by Hafele — Ensures smooth operation for doors while providing long-lasting durability.

Properties

Product Code: 926.18.480
Category: Butt Hinges

Material Properties

Used Material:
Brass
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): 3
Height (cm): 14
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
ISO_27001_ENG
926.18.480_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Butt hinge, For rebated interior doors - 926.18.480 by Hafele represents a refined fusion of quality and functionality. This hinge is designed with a fixed pin and intermediate ring, featuring a square flange shape that enhances its aesthetic appeal. Made from brass, it not only offers a polished finish but also ensures longevity and resistance to wear over time.

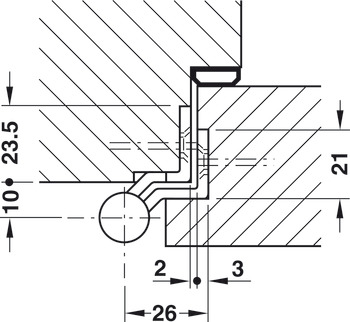

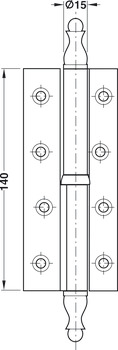

Its performance is supported by a knuckle diameter of 15 mm and a knuckle length of 140 mm. The hinge can support up to 50 kg for two hinges and 70 kg for three hinges, making it suitable for various door weights. With a flange thickness of 3 mm and a height of 140 mm, it provides a secure fit during installation. The 10 mm pin diameter and 3.15 mm routing depth facilitate easy mounting, while the compatibility with a 20 mm router bit enhances usability.

This butt hinge not only performs its function of allowing doors to open and close smoothly but also adds an elegant touch to any interior. Hafele's product is designed to meet the needs of users effectively.
