Butt Hinges

Butt hinge, For rebated interior doors - 926.17.680

HAFELE

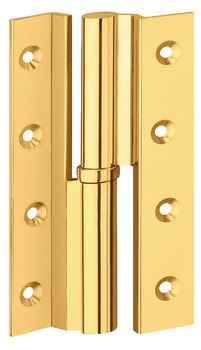

Butt hinge, For rebated interior doors - 926.17.680 by Hafele — A robust and aesthetic hinge solution for interior doors.

Properties

Product Code: 926.17.680
Category: Butt Hinges

Material Properties

Used Material:
Brass
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): No Information
Height (cm): 14
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR
926.17.680_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Butt hinge, For rebated interior doors - 926.17.680 by Hafele represents a refined fusion of quality and functionality. This hinge is designed with a fixed pin and a ball bearing with an intermediate ring, featuring a square flange shape that enhances its aesthetic appeal. Made from brass, it offers both elegance and durability.

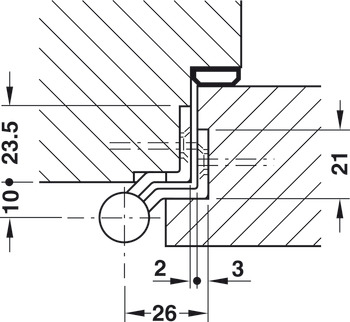

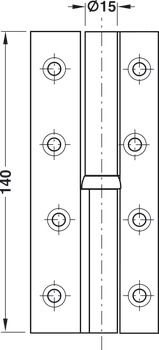

With a maximum door weight capacity of 50 kg for two hinges and 70 kg for three, this product ensures smooth operation for interior doors. The 140 mm flange height and 15 mm knuckle diameter provide a solid mounting solution, while the 10 mm pin diameter and 3.15 mm routing depth facilitate easy installation.

Hafele's butt hinge stands out for its combination of functionality and style, making it an excellent choice for any interior door application.
