Butt Hinges

Butt hinge, for flush interior doors up to 160 kg, Startec - 926.94.703

HAFELE

Butt hinge, for flush interior doors up to 160 kg, Startec - 926.94.703 by Hafele — ensures secure and smooth door operation.

Properties

Product Code: 926.94.703
Category: Butt Hinges

Material Properties

Used Material:
Stainless steel, quality AISI 316
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 10.2
Width (cm): 8.9
Height (cm): 10.2
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

926.94.703_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

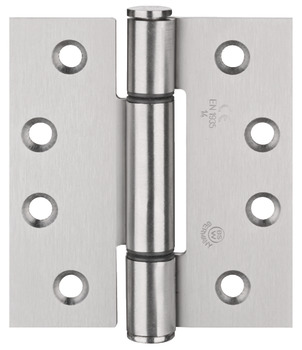

The Butt hinge, for flush interior doors up to 160 kg, Startec - 926.94.703 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right-hand use, it features a square flange shape that enhances its aesthetic appeal. Made from AISI 316 quality stainless steel, this hinge offers exceptional durability and resistance to corrosion.

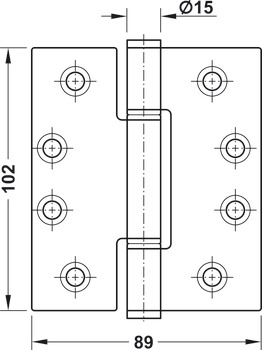

With a flange width of 89 mm, a flange thickness of 3 mm, and a flange height of 102 mm, it is engineered to support door weights of up to 160 kg when using two hinges. The knuckle diameter is 15 mm, and the knuckle length is 102 mm, ensuring smooth operation. This product is certified in compliance with EN 1935:2002, with a grade of 4|7|7|1|1|4|1|14.

This hinge ensures secure and smooth door operation, providing long-term satisfaction to users. It stands out as a reliable choice among Hafele's quality products.
