Butt Hinges

Butt hinge - 926.98.081

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Butt hinge - 926.98.081 by Hafele — A high-quality hinge that ensures smooth door operation.

Properties

Product Code: 926.98.081
Category: Butt Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

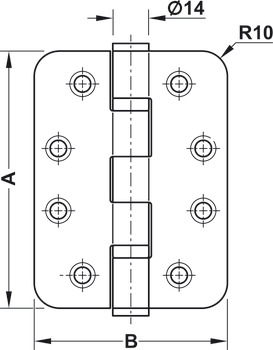

Dimensions

Length (cm): 10.2
Width (cm): 10.2
Height (cm): 10.2
Volume (cm³): 1061.21

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
926.98.081_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
926.98.081_Certificate of Constancy of Performance according to EN 19352002
ISO_27001_ENG
926.98.081_Certificate of approval
926.98.081_Declaration of Performance certificate DE EN
ISO_9001_TR
926.98.081_Certificate of performance constancy according to EN 19352002

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

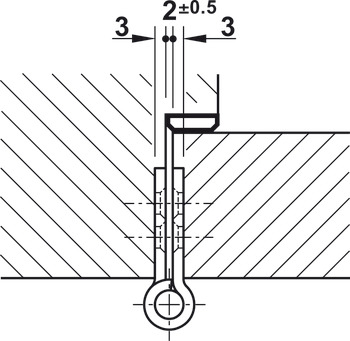

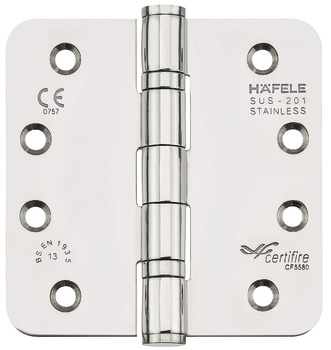

The Butt hinge - 926.98.081 by Hafele represents a refined fusion of quality and functionality. With a radius of 10 mm, this hinge is designed for wooden frames and is perfect for flush interior doors. Made from AISI 201 grade stainless steel, it can support a maximum door weight of 120 kg when using two hinges. Its knuckle length of 102 mm and a router bit diameter of 20 mm make installation straightforward.

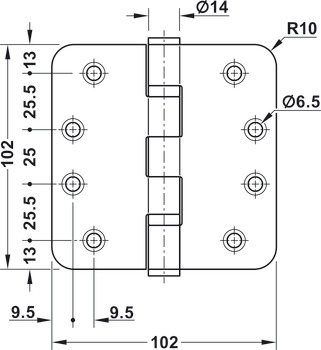

This hinge features a fixed pin bearing type, ensuring long-lasting performance. Certified in compliance with EN 1935:2002, it boasts a grade rating of 4|7|6|1|1|4|0|13. With a total width of 102 mm and a flange height of 102 mm, it fits seamlessly into various interior designs while providing a polished finish.

The Butt hinge - 926.98.081 highlights the unique blend of aesthetics and functionality, making it a reliable choice for any door application.
