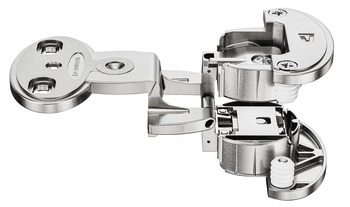

Architectural hinge, Model 2000 SM, twin mounting - 344.00.328 by Hafele — Designed for wooden or metal doors, this hinge stands out for its durability and functionality. Made from high-quality zinc alloy, it ensures long-lasting performance.
Used Material:
Zinc alloy
Durability:
High durability
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.7
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR
344.00.328_Safety notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

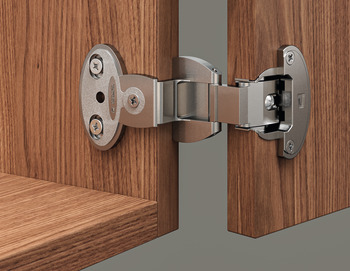

The Architectural hinge, Model 2000 SM, twin mounting - 344.00.328 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden and metal doors, featuring a concealed hinge version that provides an aesthetic appeal. Crafted from zinc alloy, it offers high durability and is finished in a matte nickel plating for a stylish look.

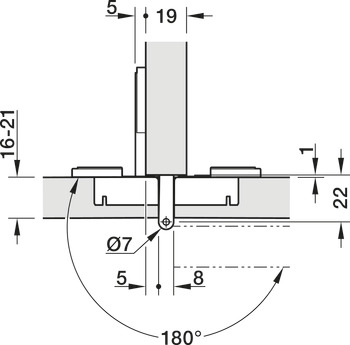

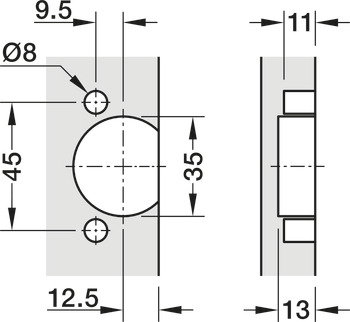

With an opening angle of 180°, it allows for wide access. The door thickness ranges from 16 to 21 mm, while the side panel thickness is 19 mm. It features a cup drilling depth of 13 mm and a cup drilling diameter of 35 mm, ensuring easy installation. The drilling pattern of 45/9.5 is compatible with various setups, and the 7 mm knuckle diameter provides a secure connection, complemented by an 8 mm gap and a 5 mm door overlay.
The Hafele Architectural hinge, Model 2000 SM, twin mounting - 344.00.328 is an excellent choice for those seeking both aesthetics and functionality. It is designed to stand out with its durability and quality.
