Architectural hinge, Model 2000 SM, half overlay mounting - 344.00.309

HAFELE

Architectural hinge, Model 2000 SM, half overlay mounting - 344.00.309 by Hafele — An excellent hinge solution for wooden and metal doors.

Properties

Product Code: 344.00.309
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.7

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
344.00.309_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

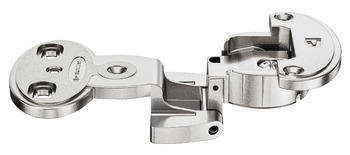

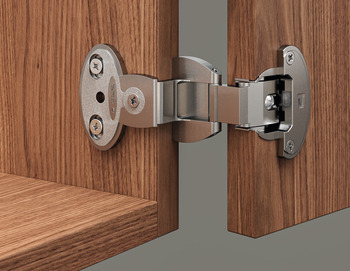

The Architectural hinge, Model 2000 SM, half overlay mounting - 344.00.309 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for half overlay mounting, making it suitable for both wooden and metal doors. It features a cranked design, enhancing ease of installation with a quick fixing system.

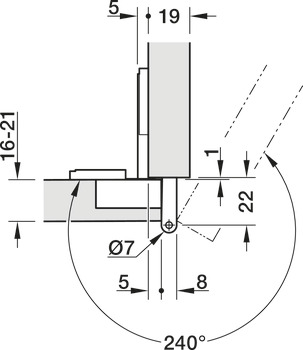

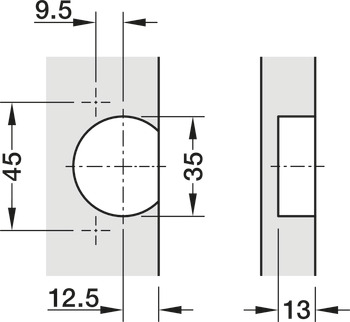

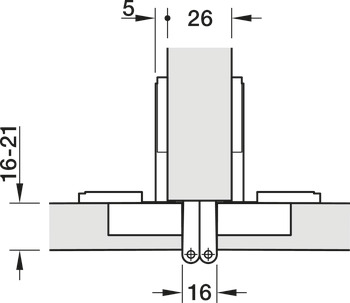

Constructed from durable zinc alloy, it showcases a matte nickel finish that adds an aesthetic appeal. With an opening angle of 240°, it allows for wide door access. It accommodates door thicknesses of 16-21 mm and works seamlessly with side panels of 19 mm thickness. Additionally, it requires a cup drilling depth of 13 mm and a cup drilling diameter of 35 mm. The knuckle diameter is 7 mm, ensuring a robust connection.

This product offers side adjustment of -3/0 mm and height adjustment of ±2 mm, providing 2D adjustment capabilities. The hinge arm and cup fixing are done via screws. The quick fixing system SM makes door installation significantly easier. These features provide users with great convenience and flexibility. Hafele's product stands out with its quality materials and functionality.
