Used Material:
Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.5
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_ENG
344.00.319_Safety notes
ISO_27001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

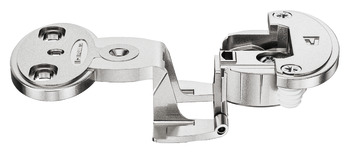

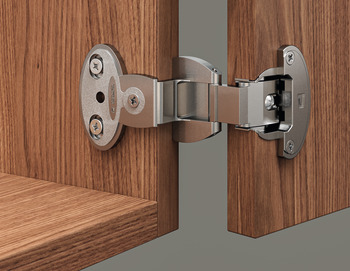

The Architectural hinge, Model 2000 SM, full overlay mounting - 344.00.319 by Hafele represents a refined fusion of quality and functionality. Designed for full overlay mounting, this hinge is suitable for both wooden and metal doors. Made from high-quality zinc alloy and finished with a matte nickel plating, it offers both durability and aesthetic appeal. With an opening angle of 270°, it allows for wide access, enhancing usability. The installation is facilitated by a quick fixing system, saving time and effort during setup.

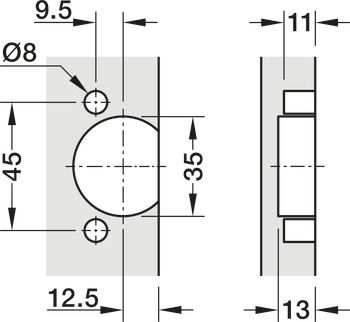

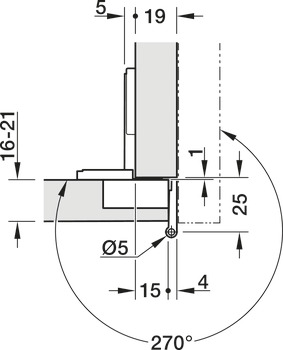

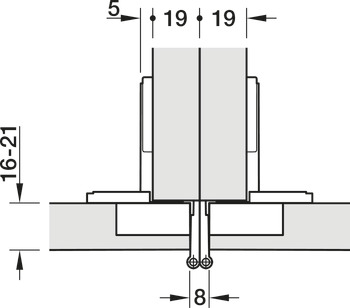

This hinge is ideal for doors with a thickness of 16-21 mm and works seamlessly with a side panel thickness of 19 mm. It requires a cup drilling depth of 13 mm and a cup drilling diameter of 35 mm. The hinge also features a knuckle diameter of 5 mm, ensuring a robust connection. Additionally, it offers side adjustment of -3/0 mm and height adjustment of ±2 mm, providing flexibility during installation.
The Architectural hinge, Model 2000 SM, full overlay mounting - 344.00.319 by Hafele combines aesthetic appeal with functionality, making it a perfect choice for various interior designs. This product meets the expectations of users with its quality materials and intelligent design.
