Furniture Hinges

Architectural hinge, Model 2000 A, half overlay mounting - 344.00.324

HAFELE

Architectural hinge, Model 2000 A, half overlay mounting - 344.00.324 by Hafele — An ideal hinge solution for wooden and metal doors.

Properties

Product Code: 344.00.324
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.7

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
344.00.324_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

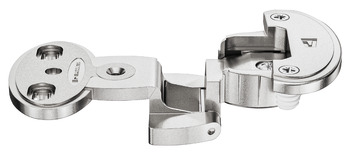

The Architectural hinge, Model 2000 A, half overlay mounting - 344.00.324 by Hafele represents a refined fusion of quality and functionality. Designed for half overlay mounting, this hinge combines aesthetics with durability. Made from zinc alloy, it features a sleek matte nickel finish that enhances its visual appeal.

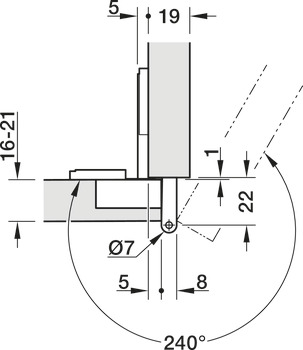

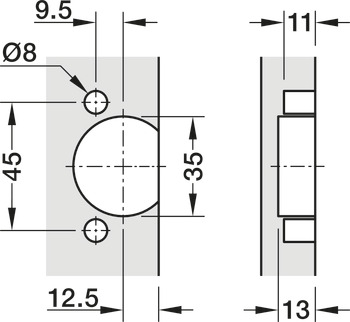

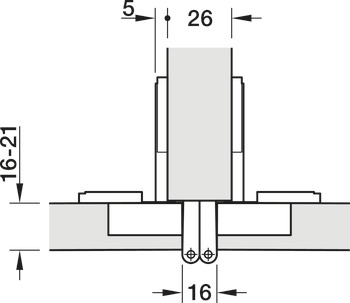

This hinge allows for a 240° opening angle, facilitating smooth operation of doors. It accommodates door thicknesses between 16 – 21 mm and is compatible with side panel thicknesses of 19 mm. The cup drilling depth of 13 mm and a cup drilling diameter of 35 mm simplify installation. Additionally, the hinge arm is secured with screws for a reliable fit.

Hafele's Architectural hinge, Model 2000 A, half overlay mounting stands out with its quality and functionality. It ensures smooth door operation while providing an elegant look.
