Used Material:
Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.7
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
ISO_27001_TR
344.00.333_Safety notes
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

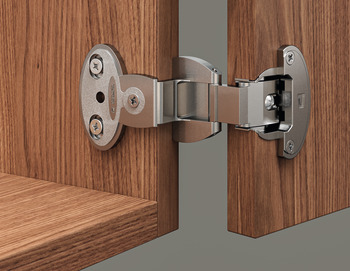

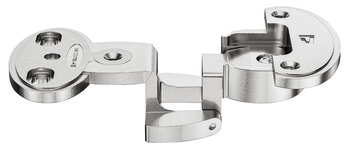

The Architectural hinge, Model 2000 A, full overlay mounting - 344.00.333 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for full overlay mounting, making it ideal for both wooden and metal doors. Made from high-quality zinc alloy, it features a matte nickel finish that enhances its aesthetic appeal. With an opening angle of 270°, it allows for easy access and smooth operation.

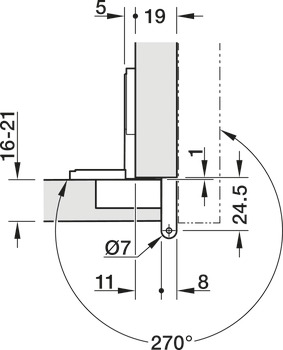

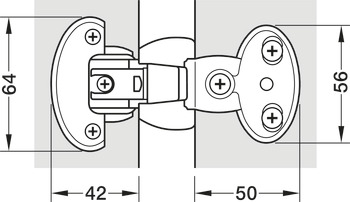

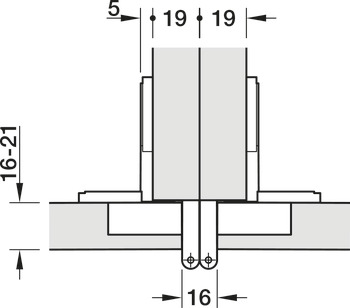

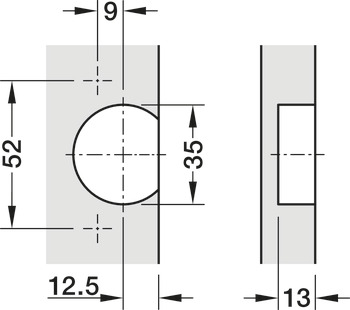

This hinge accommodates door thicknesses ranging from 16 to 21 mm, with a side panel thickness of 19 mm. The cup drilling depth is 13 mm with a cup drilling diameter of 35 mm, ensuring a secure fit. The knuckle diameter is 7 mm, and it provides an 8 mm gap with an 11 mm door overlay. It also offers adjustment facilities with side adjustment of -3/0 mm and height adjustment of ±2 mm, allowing for precise alignment. The hinge arm and cup fixing are both designed for screw fixing, ensuring durability and stability.
The Architectural hinge, Model 2000 A stands out for its unique strengths, making it a preferred choice for enhancing the functionality and aesthetics of your doors.
