Furniture Hinges

Architectural hinge, Model 2000 A, full overlay mounting - 344.00.317

HAFELE

Architectural hinge, Model 2000 A, full overlay mounting - 344.00.317 by Hafele — An excellent hinge solution for wooden and metal doors.

Properties

Product Code: 344.00.317
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
344.00.317_Safety notes
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

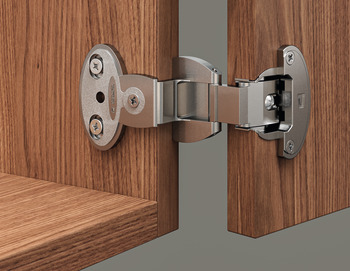

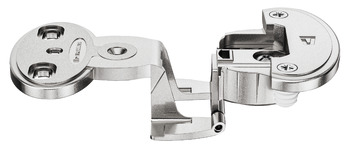

The Architectural hinge, Model 2000 A, full overlay mounting - 344.00.317 by Hafele represents a refined fusion of quality and functionality. This hinge features a full overlay mounting design that maintains the aesthetic appeal of doors while providing durability for long-term use. Made from zinc alloy, it boasts a sleek matte nickel finish that enhances its visual appeal.

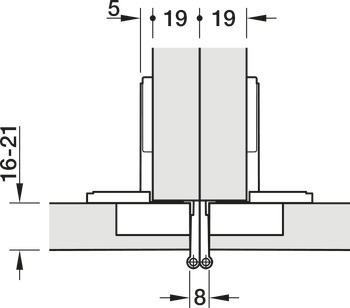

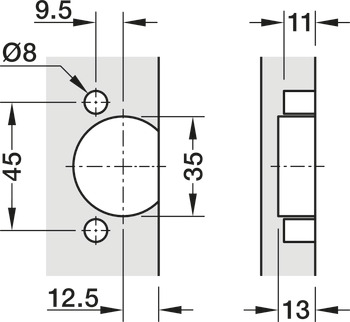

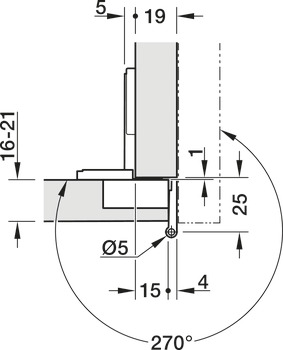

With an opening angle of 270°, this hinge allows for wide access. Suitable for door thicknesses ranging from 16 to 21 mm, it works seamlessly with a side panel thickness of 19 mm. The hinge requires a cup drilling depth of 13 mm and a cup drilling diameter of 35 mm, making installation straightforward. Its knuckle diameter of 5 mm ensures a secure connection, with a gap of 4 mm and a door overlay of 15 mm for optimal alignment.

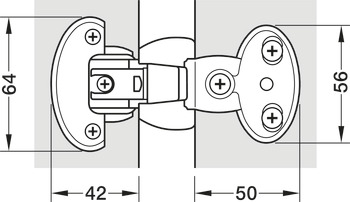

This product offers side adjustment of -3/0 mm and height adjustment of ±2 mm, providing 2D adjustment features. The hinge arm is fixed with screws for a secure installation. This product is perfect for those seeking a functional and aesthetic solution, ensuring a long-lasting experience with Hafele's quality.
