Used Material:
Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.7
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
344.00.316_Safety notes
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

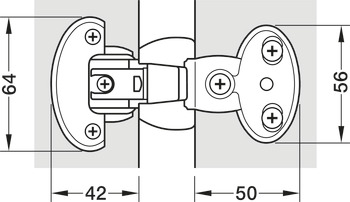

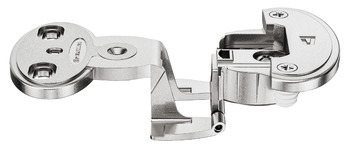

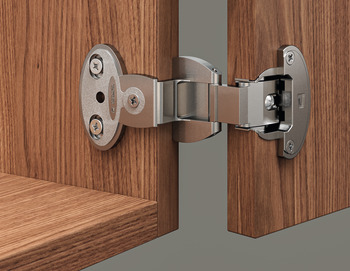

The Architectural hinge, Model 2000 A, full overlay mounting - 344.00.316 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden or metal doors, featuring a full overlay mounting style that stands out. Made from zinc alloy, it boasts a sleek matte nickel finish, ensuring both durability and aesthetic appeal. With an opening angle of 270°, it provides a wide access area, contributing to ease of use.

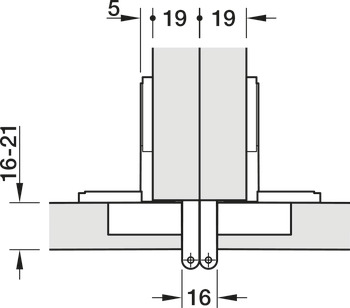

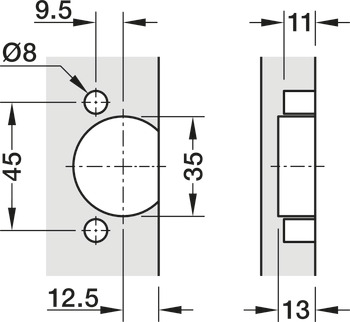

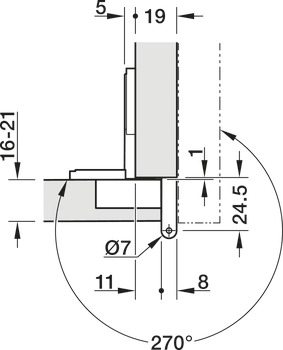

Suitable for door thicknesses ranging from 16 to 21 mm and a side panel thickness of 19 mm, this hinge requires a cup drilling depth of 13 mm with a diameter of 35 mm. The knuckle diameter is 7 mm, with an 8 mm gap and an 11 mm door overlay. The adjustment facility offers side adjustment of -3/0 mm and height adjustment of ±2 mm, making it user-friendly. The hinge arm is fixed with screws for added stability.
The Architectural hinge, Model 2000 A stands out with its unique strengths, enhancing door functionality while providing a stylish finish.
