Used Material:
Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.5
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
344.00.301_Safety notes
ISO_9001_TR
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

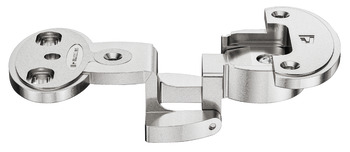

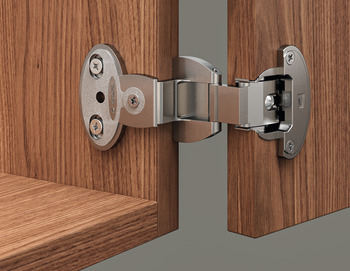

The Architectural hinge, Model 2000 A, full overlay mounting - 344.00.301 by Hafele represents a refined fusion of quality and functionality. This hinge features a full overlay mounting design that offers an aesthetically pleasing appearance for your doors. Made from high-quality zinc alloy, it is finished in a matte nickel plating that adds a touch of elegance. With an opening angle of 270°, it allows for a wide range of motion, enhancing usability.

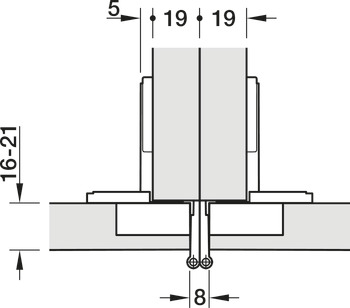

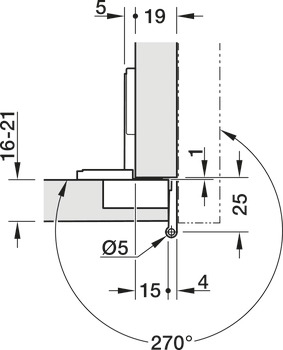

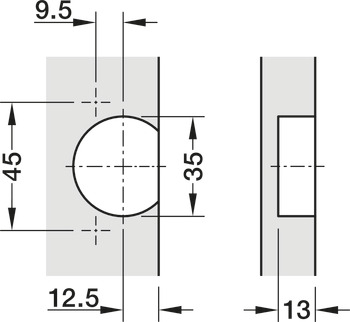

Its durability stands out, making it suitable for doors with a thickness of 16-21 mm. Designed to accommodate a side panel thickness of 19 mm, it ensures a secure fit. The hinge requires a cup drilling depth of 13 mm and a cup drilling diameter of 35 mm for easy installation. The knuckle diameter of 5 mm ensures a robust connection, while a gap of 4 mm and a door overlay of 15 mm provide flexibility in door mounting. Side adjustment of -3/0 mm and height adjustment of ±2 mm allow for precise alignment.
This product by Hafele combines aesthetics and durability, making it an ideal choice for enhancing your doors. Its ease of installation and long-lasting design make it a preferred option.
