Aluminium sliding frame door

Aluminium door frame set, forSlido F-Line44 80A and F-Line32 80A - 406.78.727

HAFELE

Aluminium door frame set, forSlido F-Line44 80A and F-Line32 80A - 406.78.727 by Hafele — This door frame set provides an excellent solution for sliding doors.

Properties

Product Code: 406.78.727
Category: Aluminium sliding frame door

Material Properties

Used Material:
Aluminium
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
406.78.727_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

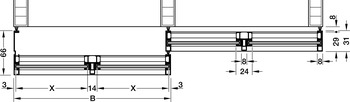

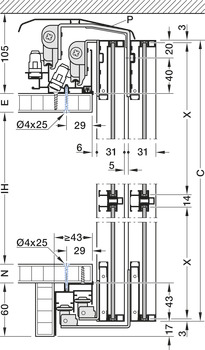

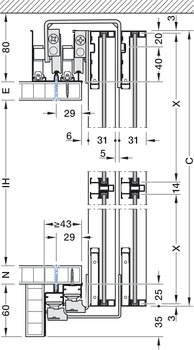

The Aluminium door frame set, forSlido F-Line44 80A and F-Line32 80A - 406.78.727 by Hafele represents a refined fusion of quality and functionality. This set is made from aluminium and is compatible with a glass thickness of 4 mm. The door frame thickness is 31 mm, allowing for easy installation with a screw position of 29 mm.

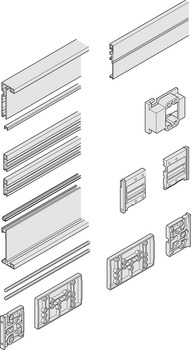

The product features running gears for direct screw fixing to the aluminium frame. Additionally, corner connections are achieved by sliding in and screw fixing the corner connector. The set includes 1 vertical profile with panel, 1 vertical profile without panel, 2 horizontal profiles, 4 clip-on profiles for glass, 4 corner connections, 2 mounting plates for bottom guides, 2 straightening fittings, and 1 drilling jig.

This product is an excellent choice for both aesthetics and functionality. With Hafele's quality, it is a door frame set that can be used securely for many years.
