Aluminium sliding frame door

Sliding Door FittingSlido F-Line44 80A, set - 407.41.019

HAFELE

Sliding Door FittingSlido F-Line44 80A, set - 407.41.019 by Hafele — a perfect solution for your doors, providing ease of use.

Properties

Product Code: 407.41.019
Category: Aluminium sliding frame door

Material Properties

Used Material:
Running gears: Steel, Runners: Steel, Rollers: Plastic, Running and guide tracks: Aluminium
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 60
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
407.41.019_Safety notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

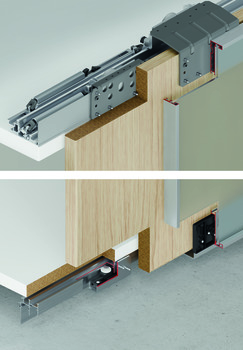

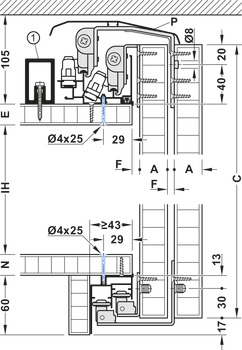

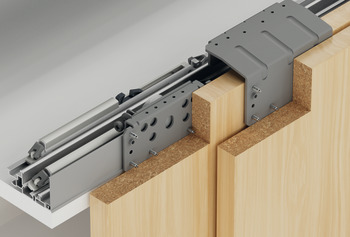

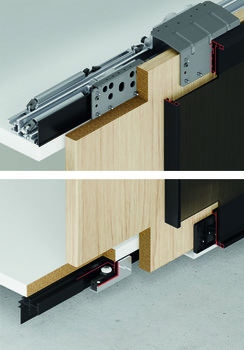

The Sliding Door FittingSlido F-Line44 80A, set - 407.41.019 by Hafele represents a refined fusion of quality and functionality. This fitting is specially designed for sliding door systems, featuring an installation depth of 80 mm at the top. The product is equipped with a single roller, and the height can be adjusted by ±2 mm. It is recommended for wooden doors, supporting a maximum weight of 70 kg for door thickness of 40 mm. Furthermore, a minimum width of 600 mm is required for two doors and 650 mm for three doors.

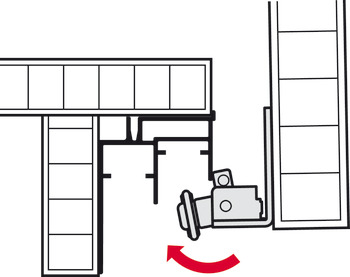

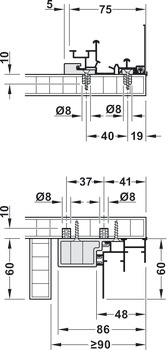

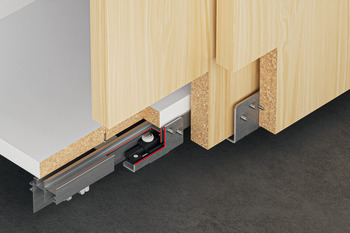

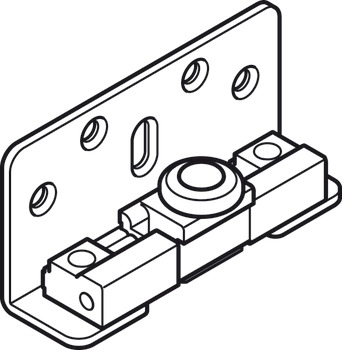

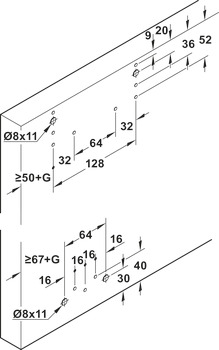

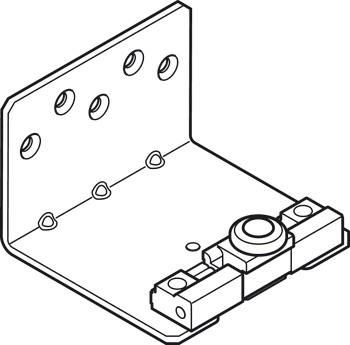

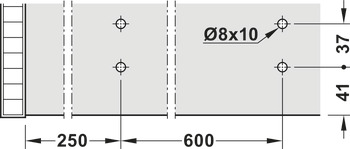

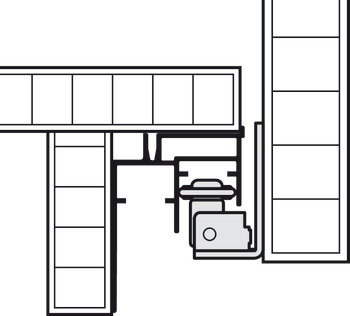

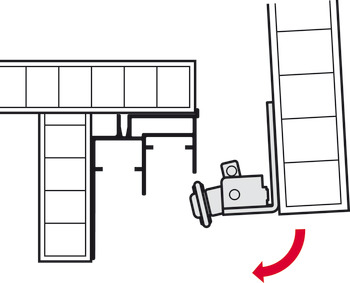

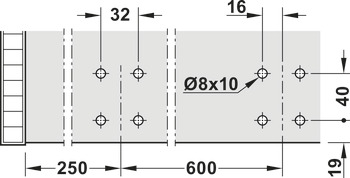

In terms of material quality, the guide is made of steel, the roller is plastic, and both the running gear and tracks are made of aluminum. The top running position allows for easy installation. With height adjustment capabilities, users can customize their doors as needed. The bottom installation depth is 90 mm. The installation process involves fixing the running gear and guide to the door wing with screws, while tracks can be fixed with screws or clips. The guide is attached semi-automatically. A recommended overlap of 20 mm is suggested for two doors. Please pay attention to the installation instructions.

The Hafele Sliding Door FittingSlido F-Line44 80A, set - 407.41.019 is an excellent solution for your doors, standing out with its quality materials and practical design.
