Aluminium sliding frame door

Sliding door fittingSlido F-Fold61 25A, set - 409.36.036

HAFELE

Sliding door fittingSlido F-Fold61 25A, set - 409.36.036 by Hafele — An excellent sliding door solution for wooden and aluminum doors.

Properties

Product Code: 409.36.036
Category: Aluminium sliding frame door

Material Properties

Used Material:
Rollers: Plastic
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 45
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
409.36.036_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Sliding door fittingSlido F-Fold61 25A, set - 409.36.036 by Hafele represents a refined fusion of quality and functionality. This fitting is designed for wooden and aluminum frame doors, compatible with frame widths greater than 50 mm. The minimum door thickness is 16 mm, and the maximum door height is 2100 mm. It supports door weights up to 25 kg, and for double doors, this value can go up to 50 kg.

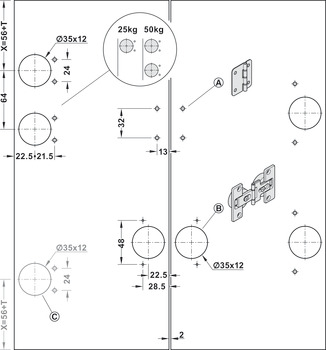

This top-running sliding door fitting features a 4-roller running mechanism, guided by ball bearings. Door adjustments can be made via hinges, and the installation is suitable for both left and right sides. The set includes one concealed hinge for the left door and one for the right door, along with eight panel-to-panel hinges. However, running tracks, fixing materials, and concealed hinges for lateral connections are not included in the set and must be ordered separately.

The Hafele Sliding door fittingSlido F-Fold61 25A, set - 409.36.036 stands out for its aesthetic and functional qualities. Its user-friendly design allows for easy use in various settings.
