Surface Mounted Downlight, Nimbus Modul Q 36 ON-X - 833.69.025
Light

Surface Mounted Downlight, Nimbus Modul Q 36 ON-X - 833.69.025

HAFELE

Download Product Files

Surface Mounted Downlight, Nimbus Modul Q 36 ON-X - 833.69.025 by Hafele — A modern and energy-efficient lighting solution for contemporary spaces.

Properties

Product Code: 833.69.025
Category: Light

Material Properties

Used Material:
Acrylic glas
Durability:
L80/B10 >50,000 hours

Product Attribute Symbols

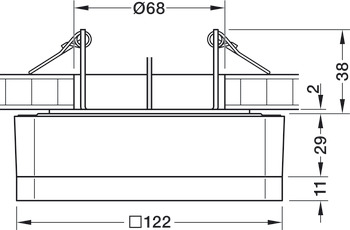

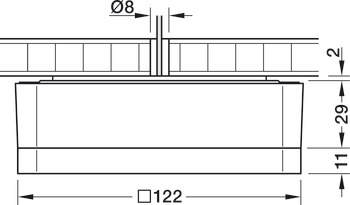

Dimensions

Length (cm): 20
Width (cm): 20
Height (cm): 8
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_TR
  • ISO_27001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • 833.69.025_Safety notes
  • ISO_9001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Surface Mounted Downlight, Nimbus Modul Q 36 ON-X - 833.69.025 by Hafele represents a refined fusion of quality and functionality. This lighting fixture is made from acrylic glass, featuring an elegant design. Equipped with 36 LEDs, it provides an impressive luminous output of 940 lumens.

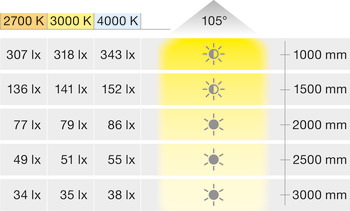

With a refraction angle of 105°, it ensures a wide illumination area. The dimmable feature allows users to adjust the light intensity, providing flexibility. Rated at IP20, the Nimbus Modul Q is ideal for indoor use. With a wattage of 7.30 W, it offers energy efficiency and a luminous efficacy of 129 lm/W.



The Nimbus Modul Q 36 ON-X stands out with its modern design and high performance. Its energy efficiency and long lifespan meet user expectations.
