Flap Fittings & Stays

Stay flap fittingFree flap 3.15 E (electric) - 372.91.951

HAFELE

Stay flap fittingFree flap 3.15 E (electric) - 372.91.951 by Hafele — An ideal solution for large one-piece flaps, providing ease of use. Made from durable materials for long-lasting performance.

Properties

Product Code: 372.91.951
Category: Flap Fittings & Stays

Material Properties

Used Material:
Wood, Glass, Aluminium frame
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 0.1
Height (cm): 35
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG
372.91.951_Safety data sheet for CR-2032 button cell battery push button sender

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

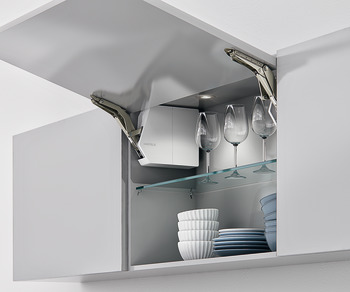

The Stay flap fittingFree flap 3.15 E (electric) - 372.91.951 by Hafele represents a refined fusion of quality and functionality. This product is designed for large, one-piece flaps made from wood or with an aluminum frame. It comes as a complete set, crafted from steel, plastic, and zinc alloy, featuring a nickel-plated finish for an aesthetic appeal.

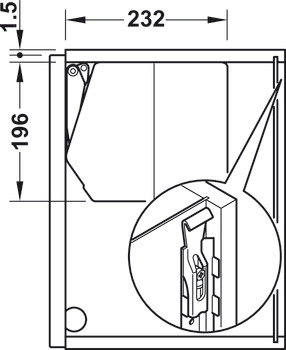

It is suitable for cabinet heights ranging from 350 mm to 650 mm and widths up to 1200 mm, with an installation depth of 232 mm. Operating on an input voltage of 100-240 V AC, it consumes only 1 W in standby mode, ensuring energy efficiency.

This product features a clip system for tool-free mounting on pre-mounted front fixing brackets, allowing for height, side, and tilting angle adjustments of ±1.5 mm. It is essential to connect only one Free E drive unit to the supplied power supply. For cabinet widths greater than 1200 mm, ordering two sets is recommended.

The Stay flap fittingFree flap 3.15 E combines excellent design and durability, making it a valuable addition to any furniture application.
