Flap Fittings & Stays

Stay Flap Fitting, Blum Aventos HKi - 372.85.949

HAFELE

Stay Flap Fitting, Blum Aventos HKi - 372.85.949 by Hafele — designed for one-piece flaps, offering excellent adjustability. Durable steel construction ensures long-lasting use.

Properties

Product Code: 372.85.949
Category: Flap Fittings & Stays

Material Properties

Used Material:
Fitting: Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

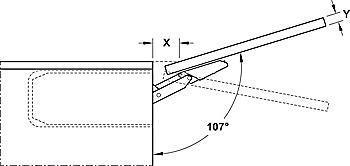

The Stay Flap Fitting, Blum Aventos HKi - 372.85.949 by Hafele represents a refined fusion of quality and functionality. This fitting is designed for one-piece flaps made from wood or with aluminum frame, providing a continuously adjustable opening angle of 107 degrees. The durable steel material ensures long-lasting performance, while the onyx black and zinc-plated finish adds an aesthetic touch.

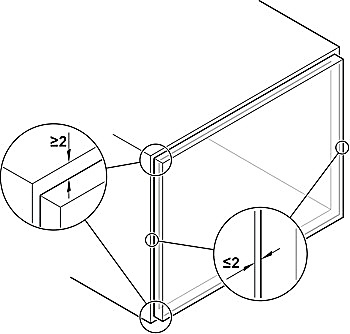

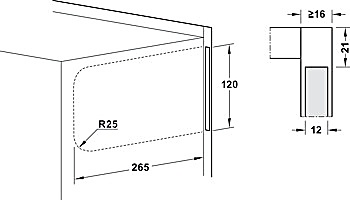

With an installation depth of 265 mm, this fitting is suitable for cabinet widths up to 1,800 mm. It accommodates cabinet heights ranging from 162 mm to 600 mm. The three-dimensional adjustment capability allows for height, side, and inclination adjustments of ±2 mm, while the opening and closing forces can be continuously adjusted for enhanced user comfort.

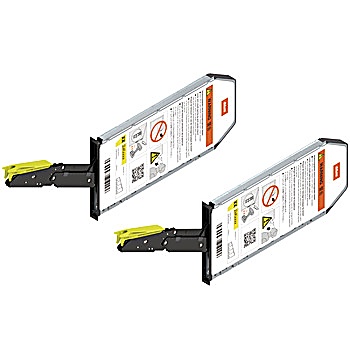

This product can only be combined with a concealed cabinet hanger. A larger lift mechanism is recommended for overlap areas. The maximum front panel weight is 18 kg with two lift mechanisms. For wide cabinets, a lift mechanism mounted to the center panel is recommended to prevent sagging of the front panel in the open position. Quick fixing of the front panel without tools is possible using the clip system. The product is supplied with one lift mechanism set (2 pieces, symmetrical) and installation instructions.

The Stay Flap Fitting, Blum Aventos HKi - 372.85.949 stands out with its user-friendly design and durable construction. This fitting is preferred for its ease of installation and long-lasting use.
