The Stay Flap Fitting, Blum Aventos HKi - 372.85.945 by Hafele represents a refined fusion of quality and functionality. This fitting is designed for one-piece flaps made from wood or with an aluminum frame. It is constructed from durable steel and features an onyx black and zinc-plated finish for an aesthetically pleasing look.

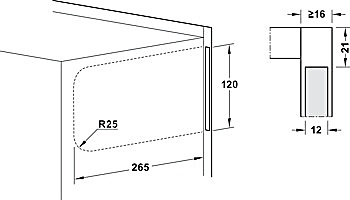

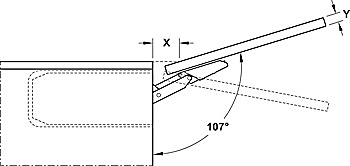

With a continuously adjustable opening angle of 107 degrees, it provides a user-friendly experience. Suitable for cabinet widths of up to 1,800 mm and heights ranging from 162 mm to 600 mm, it offers practical usability with a mounting depth of 265 mm. The three-dimensional adjustment facility allows for height, side, and inclination adjustments of ±2 mm, while the opening and closing forces can be continuously adjusted.

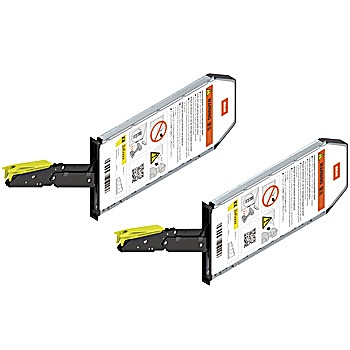

The maximum front panel weight is 18 kg, supported by two lift mechanisms. For wide cabinets, a lift mechanism mounted to the center panel is recommended to prevent sagging of the front panel in the open position. It is suitable for side panel thicknesses of 16-25 mm. Front fixing brackets are not supplied and should be ordered separately. The product comes with one lift mechanism set (2 pieces, symmetrical) and one installation instruction.
The unique advantages of this fitting include high durability, ease of use, and an attractive appearance. With Hafele's mounting solution, you can achieve perfect organization in your cabinets.
