Special hinge, For full overlay and half overlay mounting, 6 mm gap - 344.75.760

HAFELE

Special hinge, For full overlay and half overlay mounting, 6 mm gap - 344.75.760 by Hafele — An excellent mounting solution for thin doors.

Properties

Product Code: 344.75.760
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 4.7
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 0.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

344.75.760_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

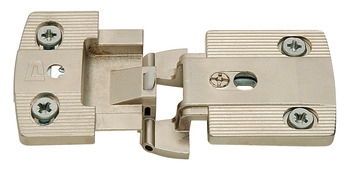

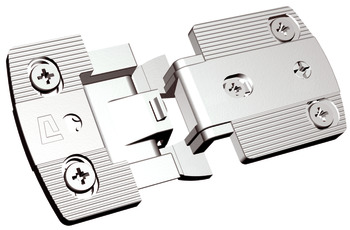

The Special hinge, For full overlay and half overlay mounting, 6 mm gap - 344.75.760 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for thin doors and works seamlessly with laminate panels. Made from high-quality zinc alloy, it is finished with nickel plating for enhanced durability.

Additionally, the hinge offers a 240° opening angle and is suitable for door thicknesses ranging from 10 to 13 mm. With a knuckle diameter of 5 mm and a knuckle length of 47 mm, it ensures a secure grip during installation. The 6 mm gap design makes it ideal for both full overlay and half overlay mounting.

This special hinge allows for side, height, and depth adjustments during installation. Side adjustment of -2/+1 mm, height adjustment of ±2 mm, and depth adjustment of ±1 mm provide a user-friendly experience. Moreover, the hinge arm is fixed with screws and comes with specially coated self-tapping screws and one 3.3 mm twist drill bit.

In conclusion, this product stands out with its aesthetic and functional features. Hafele's special hinge meets user expectations with its ease of installation and high durability.
