Sliding door fitting, Hawa Junior 250 A, set - 942.56.004

HAFELE

Sliding door fitting, Hawa Junior 250 A, set - 942.56.004 by Hafele — An ideal solution for efficiently managing your door systems.

Properties

Product Code: 942.56.004
Category: Transport Straps

Material Properties

Used Material:
Zinc alloy, Aluminium, Plastic, Rubber
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 300
Width (cm): 3.5
Height (cm): 0.4
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

942.56.004_Safety notes
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Sliding door fitting, Hawa Junior 250 A, set - 942.56.004 by Hafele represents a refined fusion of quality and functionality. This fitting set can accommodate 1 or 2 door wings, providing flexibility. Designed for wooden doors, it can support door weights of up to 250 kg and is compatible with door widths ranging from 35 mm to 3000 mm.

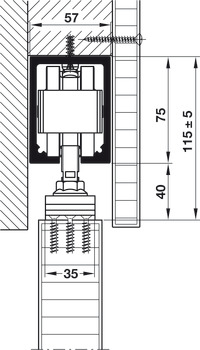

The product offers installation options for ceiling or wall mounting. It is suitable for door thicknesses between 35 mm and 80 mm and features side adjustment capabilities for easy installation. With a maximum door height of 4000 mm, this system operates from the top, ensuring smooth and quiet movement. Installation is achieved through suspension with a suspension bar, and door processing can be done for screw fixing.

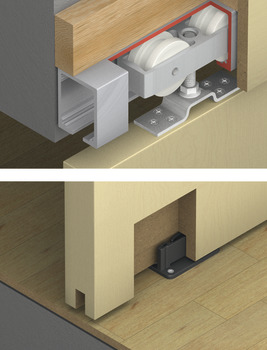

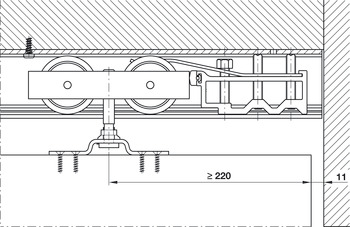

The set includes 2 running gears, 2 support flanges, 2 track buffers, 1 clear threshold floor guide, and 1 height adjustment spanner. These features make installation quick and straightforward. The sliding door fitting set is an excellent choice for users seeking both aesthetics and functionality.
