Wooden sliding door

Sliding door fitting, Finetta F-Flush52 - 406.11.223

HAFELE

Download Product ID Card

Download Product Files

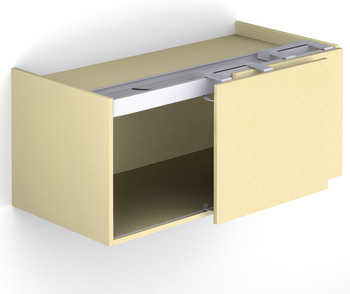

Sliding door fitting, Finetta F-Flush52 - 406.11.223 by Hafele — An ideal solution for sliding wooden doors.

Properties

Product Code: 406.11.223
Category: Wooden sliding door

Material Properties

Used Material:
≥18 mm
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 0.1
Height (cm): 0.1
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
406.11.223_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

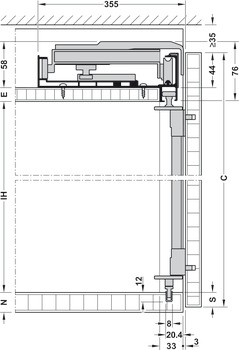

The Sliding door fitting, Finetta F-Flush52 - 406.11.223 by Hafele represents a refined fusion of quality and functionality. This fitting comes with two door leaves and features a soft closing mechanism that enhances user experience. Designed for door thicknesses of 18-30 mm, it accommodates a maximum thickness of 40 mm including handles.

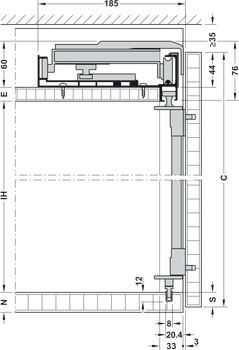

Hafele's fitting is suitable for doors weighing between 7-20 kg and can support door heights of up to 1200 mm. With a top mounting position and an installation depth of 185 mm, it offers flexibility during installation. Side adjustment of ±3 mm and height adjustment of ±4.5 mm ensure precise fitting.

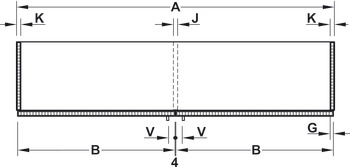

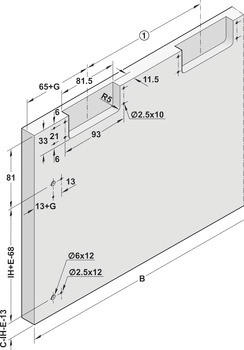

Door adjustment is done via a hexagon screw, with a maximum door offset of 46.50 mm. The maximum door overlap at the cabinet side panel is 48 mm, and a minimum distance of 10 mm is required from the handle to the door edge. The set includes a running track, two running gears, two door drive shafts, a bottom guide track, and all necessary fixing materials.

Hafele's Sliding door fitting, Finetta F-Flush52 stands out with its user-friendly design and high quality. It provides an ideal solution for wooden doors, merging aesthetics and functionality seamlessly.
