RainDrain Go Complete Set Shower Drain

hansgrohe

Download Product ID Card

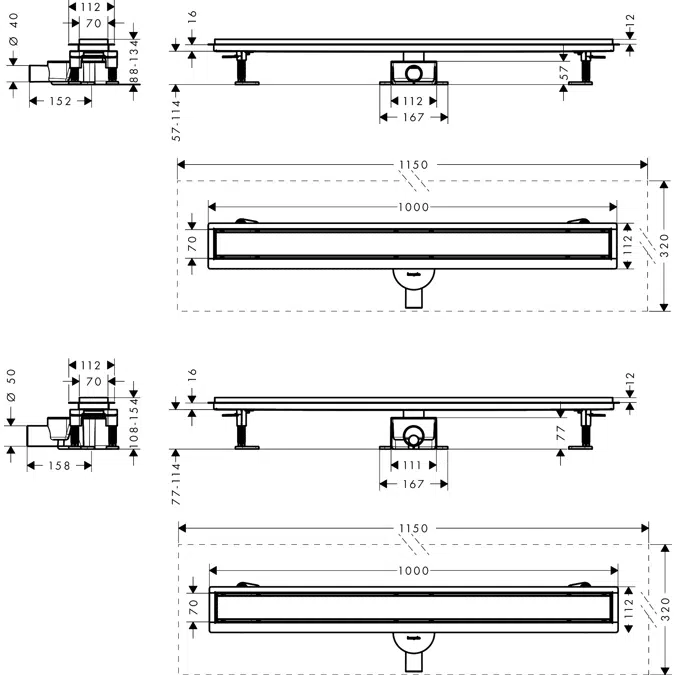

Drawing Files Technical Documents

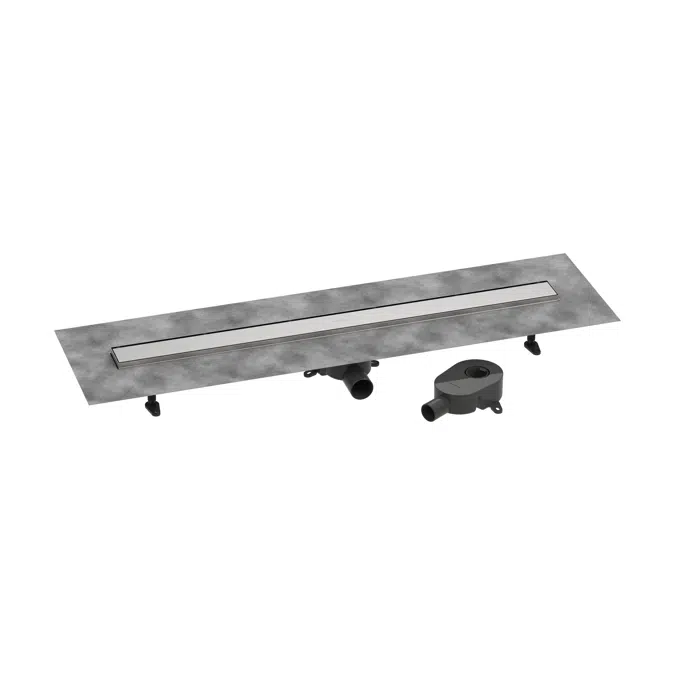

RainDrain Go Complete set shower drain 1000 tileable rear cover standard/flat installation

Properties

Product Code: 00
Category: Shower Channels

Material Properties

Used Material:
Please review product data sheet.
Durability:
It is resistant to impacts and scratches.

Product Attribute Symbols

Dimensions

Length (cm): 100
Width (cm): 32
Height (cm): 11,2
Volume (cm³): Please review product data sheet.

Assembly and Installation Instructions

Assembly: Please contact the hansgrohe support team.
Assembly Tools: Please contact the hansgrohe support team.
Assembly Instructions: Please contact the hansgrohe support team.
Professional Help: Please contact the hansgrohe support team.

Care and Cleaning Instructions

Cleaning Instructions: Please refer to the user manual.
Care Instructions: Please contact the hansgrohe support team.
Recommended Cleaning Materials: Damph Cloth.

Safety and Quality Documents

No File

Images

No image

Pricing and Payment Conditions

Pricing Policy: Please contact the hansgrohe support team.
Payment Options: Please contact the hansgrohe support team.
Delivery Period: Please contact the hansgrohe support team.
Minimum Order Quantity: Please contact the hansgrohe support team

Warranty and Servicing Information

Warranty Period: 2 Years
Warranty Coverage: Please contact the hansgrohe support team.
Service Contact : Please contact the hansgrohe support team.

References

No image

Specification:

• consists of: finish set shower drain, Siphons, installation set, pre-assembled sealing membrane, grate removal tool, hair catcher

• grate material: Stainless Steel 304 (1.4301)

• material installation set: Stainless Steel 304 (1.4301)

• water seal height: 30 mm, 50 mm

• connection diameter: DN40, DN50

• direction of outlet: horizontal

• easy to clean surface

• height adjustable by 10 mm

• drainage capacity flat installation: up to 31 l/min

• drainage capacity standard installation: up to 39 l/min

• where to use: new construction, renovation

• tile thickness: up to 11 mm

• rotatable and adjustable siphon body

• easy to clean siphon

• grate removal tool allows easy removal of the finish set

• quick adjustable fastening feet

• material siphon: ABS

• mounting type: free in the floor

• tileable on the back side

• tile inlay depth: 12 mm

• choice of two different siphons, for standard or flat installation

• suitable for primary and secondary drainage
