Pivot/Folding Sliding Door Fitting, Hawa Folding Concepta III 25 Pull - 408.32.514

HAFELE

Pivot/Folding Sliding Door Fitting, Hawa Folding Concepta III 25 Pull - 408.32.514 by Hafele — A solution that enhances door functionality and saves space.

Properties

Product Code: 408.32.514
Category: Wooden sliding door

Material Properties

Used Material:
Black, Anodized
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 44
Height (cm): 190
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

408.32.514_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

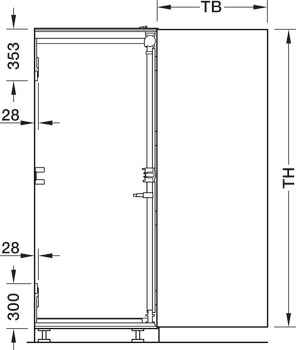

The Pivot/Folding Sliding Door Fitting, Hawa Folding Concepta III 25 Pull - 408.32.514 by Hafele represents a refined fusion of quality and functionality. This fitting is specifically designed for wooden doors, compatible with door widths ranging from 440 to 750 mm. The height adjustment allows for doors weighing up to 20 kg to be set between 1,200 and 2,200 mm, while those up to 25 kg can be adjusted between 1,900 and 2,700 mm.

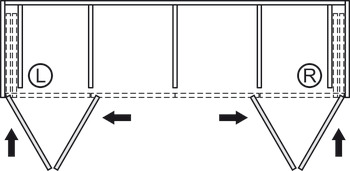

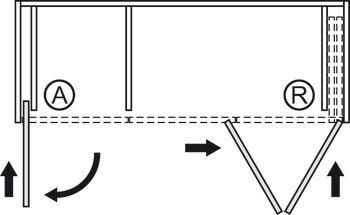

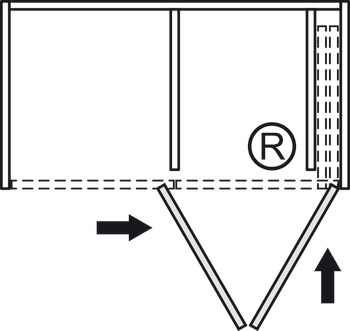

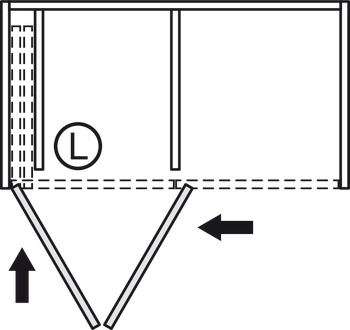

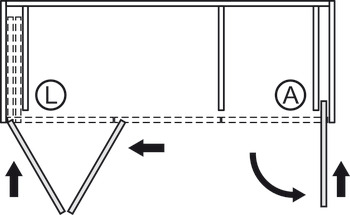

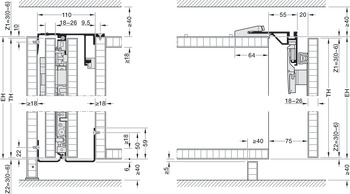

This fitting is available in both left and right sets, featuring a soft-closing mechanism when retracted into the pocket. With a thickness range of 18 to 26 mm, the product boasts a sleek black anodized finish, ensuring both durability and aesthetic appeal. The running gear is equipped with two rollers and is guided by ball bearings for smooth operation.

The Hawa Folding Door Fitting not only saves space but also combines elegance and functionality, making it an ideal choice for modern living spaces.
