Wooden sliding door

Pivot Sliding Door Fitting, Accuride 1432 - 408.24.571

HAFELE

Download Product ID Card

Download Product Files

Pivot Sliding Door Fitting, Accuride 1432 - 408.24.571 by Hafele — A perfect solution for your door systems.

Properties

Product Code: 408.24.571
Category: Wooden sliding door

Material Properties

Used Material:
Steel, Black, Zinc plated
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 71
Width (cm): 25.5
Height (cm): 91.5
Volume (cm³): 165660.75

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
408.24.571_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

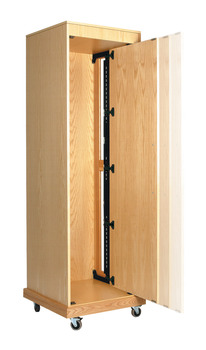

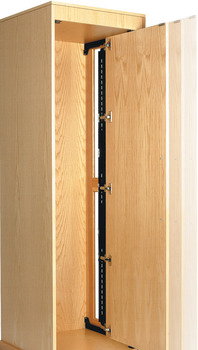

The Pivot Sliding Door Fitting, Accuride 1432 - 408.24.571 by Hafele represents a refined fusion of quality and functionality. This fitting is specifically designed for wooden doors, supporting weights of up to 34 kg. It accommodates door widths ranging from 255 mm to 660 mm and heights from 915 mm to 2300 mm. Made from steel, it features a sleek black finish with zinc plating.

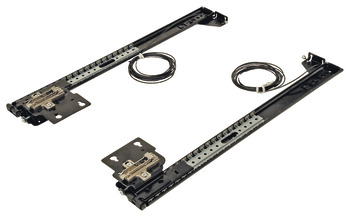

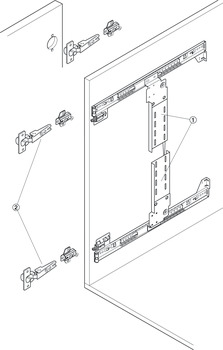

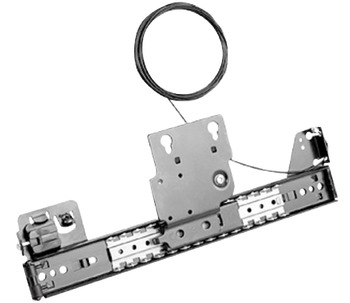

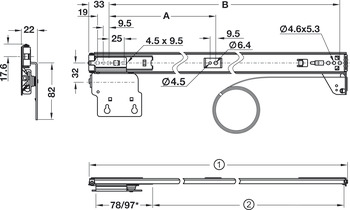

Hafele's product ensures easy installation with screw fixing. The hinge carrier strip set can be shortened, and it includes a cable system for the synchronous operation of the top and bottom runners. Suitable for door thicknesses between 19 mm and 32 mm, it measures 305 mm in length and 663 mm in width, with a mounting length of 710 mm. Please note that the hinge carrier strip set and door fixing set must be ordered separately.

Hafele's Pivot Sliding Door Fitting stands out with its high-quality materials and intelligent design, making it an ideal choice for those seeking both aesthetics and functionality.
