Wooden sliding door

Pivot Sliding Door Fitting, Accuride 1432 - 408.24.561

HAFELE

Pivot Sliding Door Fitting, Accuride 1432 - 408.24.561 by Hafele — A robust sliding door solution designed specifically for wooden doors.

Properties

Product Code: 408.24.561
Category: Wooden sliding door

Material Properties

Used Material:
Steel, Black, Zinc plated
Durability:
No Information

Product Attribute Symbols

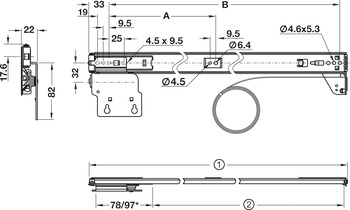

Dimensions

Length (cm): 60.8
Width (cm): 25.5
Height (cm): 91.5
Volume (cm³): 141861.6

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
408.24.561_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

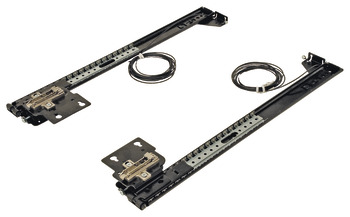

The Pivot Sliding Door Fitting, Accuride 1432 - 408.24.561 by Hafele represents a refined fusion of quality and functionality. This fitting is specially designed for wooden doors and can support door weights up to 34 kg. It is suitable for door widths ranging from 255 mm to 660 mm and heights from 915 mm to 2300 mm.

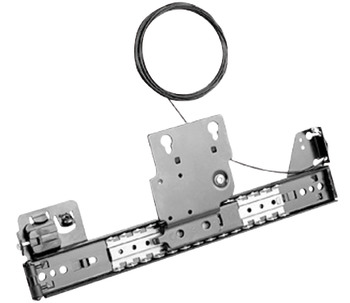

The product is compatible with door thicknesses between 19 mm and 32 mm and requires screw fixing for installation. It features a cable system that allows for the synchronous running of top and bottom runners. The hinge carrier strip set can be shortened, providing flexibility for various installations. Made from black zinc-plated steel, it comes complete with all necessary mounting materials.

The Hafele Pivot Sliding Door Fitting, Accuride 1432 is an excellent choice for those seeking both aesthetics and functionality. Its user-friendly design and sturdy construction make it an indispensable aid for wooden sliding doors.
