Wooden sliding door

Pivot Sliding Door Fitting, Accuride 1432 - 408.24.541

HAFELE

Download Product ID Card

Download Product Files

Pivot Sliding Door Fitting, Accuride 1432 - 408.24.541 by Hafele — An ideal sliding door solution for wooden doors.

Properties

Product Code: 408.24.541
Category: Wooden sliding door

Material Properties

Used Material:
Steel, Black, Zinc plated
Durability:
High durability

Product Attribute Symbols

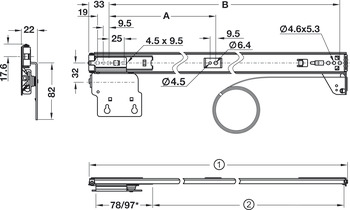

Dimensions

Length (cm): 40.5
Width (cm): 25.5
Height (cm): 91.5
Volume (cm³): 94496.62

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
408.24.541_Safety notes
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

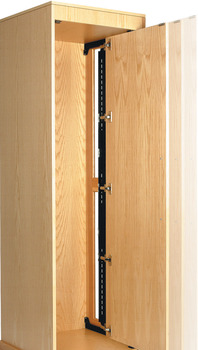

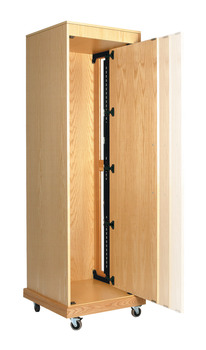

The Pivot Sliding Door Fitting, Accuride 1432 - 408.24.541 by Hafele represents a refined fusion of quality and functionality. This fitting is specifically designed for wooden doors, capable of supporting door weights up to 34 kg. It accommodates door widths ranging from 255 mm to 660 mm and heights from 915 mm to 2300 mm. Constructed from durable steel, it features a sleek black zinc plating that adds an aesthetic touch.

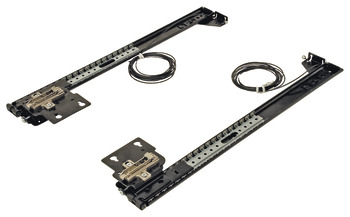

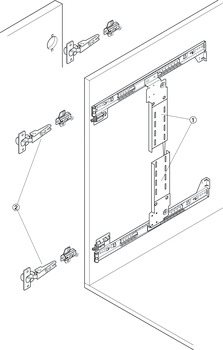

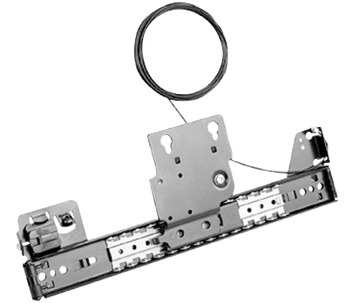

Installation is straightforward, utilizing screw fixing for secure attachment. The hinge carrier strip set can be shortened, and it includes a cable system that ensures synchronous operation of the top and bottom runners. It is compatible with door thicknesses between 19 mm and 32 mm. The installation length is 40.5 cm, with a width of 35.8 cm. Note that the hinge carrier strip set and door fixing set must be ordered separately.

This product stands out with its user-friendly design and high-quality materials. Hafele's solution is a reliable choice in sliding door systems.
