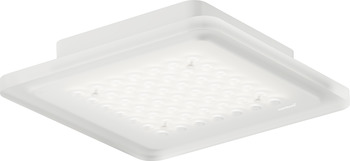

Nimbus Modul Q 49 Connect ON-XD Tunable White Downlight - 833.67.940
Light

Nimbus Modul Q 49 Connect ON-XD Tunable White Downlight - 833.67.940

HAFELE

Download Product Files

Nimbus Modul Q 49 Connect ON-XD Tunable White Downlight - 833.67.940 by Hafele — A modern lighting solution that provides energy efficiency for your spaces.

Properties

Product Code: 833.67.940
Category: Light

Material Properties

Used Material:
Acrylic glas
Durability:
L80/B10 >50,000 h

Product Attribute Symbols

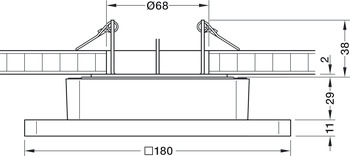

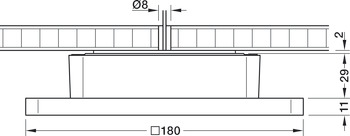

Dimensions

Length (cm): 20
Width (cm): 20
Height (cm): 10
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • 833.67.940_Safety notes
  • ISO_27001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Nimbus Modul Q 49 Connect ON-XD Tunable White Downlight - 833.67.940 by Hafele represents a refined fusion of quality and functionality. This downlight comes with an integrated driver, ensuring ease of installation and use. Made from acrylic glass, it offers both aesthetic appeal and durability. With 98 LEDs, it provides an adjustable color temperature ranging from 2700K to 5000K, allowing you to create different atmospheres in your space.

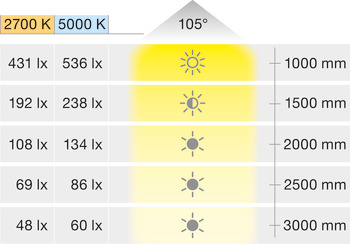

Performance-wise, the Nimbus Modul Q 49 boasts a luminous flux of 870 lumens and an efficacy of 91 lm/W, making it an energy-efficient choice. Its dimmable feature allows you to adjust the light intensity according to your needs. Additionally, with an IP20 protection rating, it is suitable for use in wet areas (zone 2), ensuring safety and reliability.



The Nimbus Modul Q 49 Connect ON-XD Tunable White Downlight stands out with its superior lighting quality and modern design, making it a valuable addition to any space.
