Furniture Hinges

Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.003

HAFELE

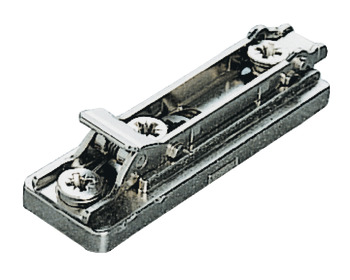

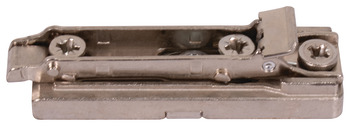

Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.003 by Hafele — This mounting plate is designed for Häfele Metalla 510 concealed hinges.

Properties

Product Code: 329.67.003
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
329.67.003_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.003 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from zinc alloy and features a nickel-plated finish, providing both durability and aesthetic appeal. Its user-friendly design simplifies the installation process significantly.

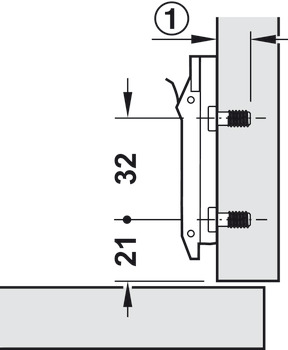

Designed to accommodate drill holes of 5 mm in diameter and a drilling depth of 11.50 mm, this mounting plate is versatile for various installation needs. It features a screw distance of 32 mm and an edge distance of 21 mm, ensuring compatibility with different hinge systems. Height and depth adjustments can be made via an eccentric system, offering flexibility during installation.

The Mounting plateMetalla 510 SM stands out by simplifying the installation process while providing a reliable solution for various mounting needs. With Hafele's quality, this product is an excellent choice for any assembly requirement.
