Furniture Hinges

Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.002

HAFELE

Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.002 by Hafele — This mounting plate is ideal for Häfele Metalla 510 concealed hinges.

Properties

Product Code: 329.67.002
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
ISO_27001_ENG
329.67.002_Safety notes
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

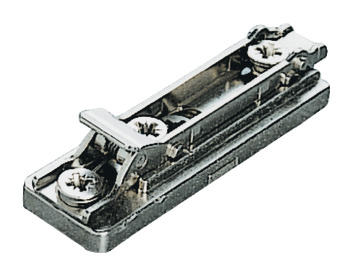

The Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.002 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from durable zinc alloy and features a nickel plating finish. Its design includes pre-mounted Euro screws, making installation quick and user-friendly. The mounting plate is designed for drill holes of 5 mm in diameter and has a drilling depth of 11.50 mm, ensuring precision in installation.

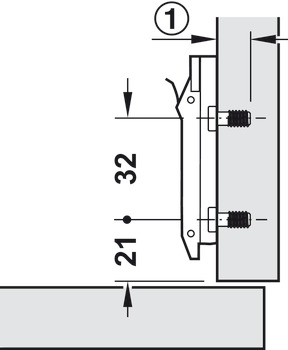

With a screw distance of 32 mm and an edge distance of 21 mm, this product allows for height and depth adjustments via an eccentric system. This feature provides flexibility and accuracy during installation. The quick fixing system SM enhances the efficiency of the mounting process, making it suitable for both professionals and DIY enthusiasts.

The Mounting plateMetalla 510 SM stands out for its practical features and high-quality construction, making it an excellent choice for anyone looking to simplify their mounting processes.
