Furniture Hinges

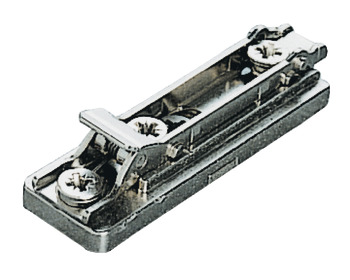

Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.000

HAFELE

Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.000 by Hafele — This product is designed for Häfele Metalla 510 concealed hinges and provides quick installation.

Properties

Product Code: 329.67.000
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
329.67.000_Safety notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Mounting plateMetalla 510 SM, zinc alloy, with pre-mounted Euro screws - 329.67.000 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from high-quality zinc alloy and features a nickel plating for enhanced durability. It is specifically designed to be compatible with Häfele Metalla 510 concealed hinges and comes with pre-mounted Euro screws to simplify the installation process.

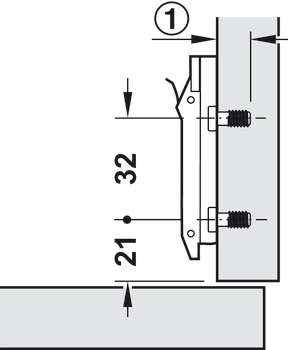

With a drill hole diameter of 5 mm and a drilling depth of 11.50 mm, the product offers practical usability. The screw distance of 32 mm and edge distance of 21 mm allow for precise installation. Additionally, the height and depth adjustments can be easily made via the eccentric system. The quick fixing system SM significantly reduces installation time.

The Mounting plateMetalla 510 SM, made from zinc alloy, is both aesthetic and durable. It stands out with its ease of installation and quick setup advantages.
